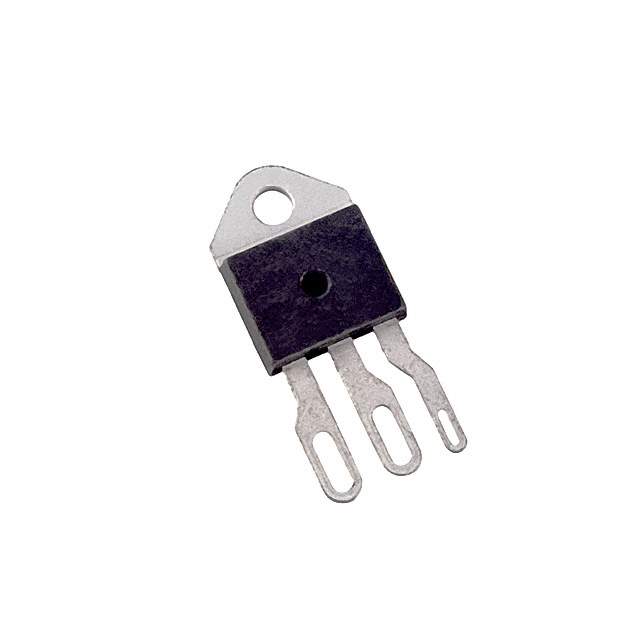

S2065JTP Real Image
Same model may have multiple batches, images only for reference.

S2065JTP

Part No S2065JTP
Manufacturer Littelfuse Inc.
Catalog SCRs - Single
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Littelfuse Inc.
Package Tube
Product Status Obsolete
Voltage - Off State 200 V
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 50 mA
Voltage - On State (Vtm) (Max) 1.8 V
Current - On State (It (AV)) (Max) 41 A
Current - On State (It (RMS)) (Max) 65 A
Current - Hold (Ih) (Max) 80 mA
Current - Off State (Max) 20 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 800A, 950A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Package / Case TO-218X-3 Isolated Tab
Supplier Device Package TO-218X Isolated
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0080
Win Source Part Number 1278806-S2065JTP
Ultra Librarian 3D Model Ultra Librarian S2065JTP CAD Model

Description

The 1278806-S2065JTP thyristor is a standard recovery SCR designed for high power applications. With a voltage off state of 200 V and a current on state of 41 A (It (AV)) and 65 A (It (RMS)), this thyristor offers reliable switching performance.

  • Current Hold (Ih) (Max): 80 mA
  • Voltage Gate Trigger (Vgt) (Max): 2 V
  • Current Gate Trigger (Igt) (Max): 50 mA
  • Voltage on State (Vtm) (Max): 1.8 V
  • Current Off State (Max): 20 µA
  • Current Non-Rep. Surge 50, 60Hz (Itsm): 800A, 950A
  • Mounting: Through-hole
  • Package: TO-218X-3 isolated tab
  • HTSUS: 8541.30.0080
  • Manufacturer: Littelfuse Inc.
  • Status: Obsolete
