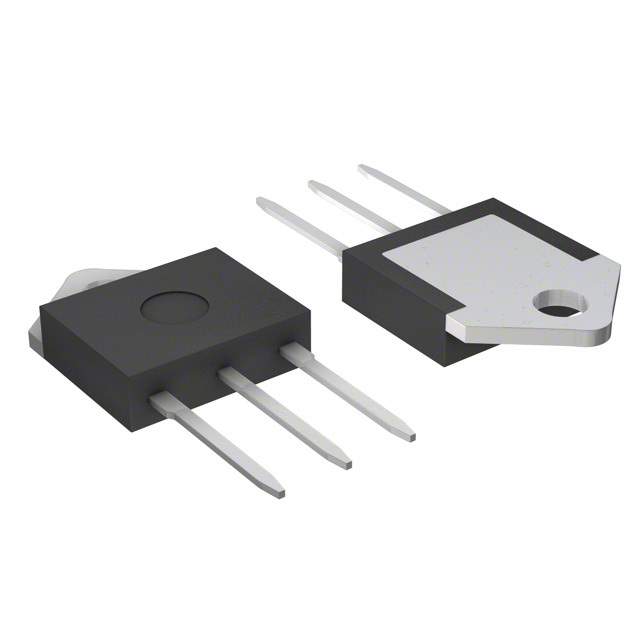

Q8040K5TP Real Image
Same model may have multiple batches, images only for reference.

Q8040K5TP

Part No Q8040K5TP
Manufacturer Littelfuse Inc.
Catalog Triacs
Description TRIAC ALTERNISTOR 800V 40A TO218
Datasheet
Q8040K5TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Tube
Triac Type Alternistor - Snubberless
Voltage - Off State 800V
Current - On State (It (RMS)) (Maximum) 40A
Voltage - Gate Trigger (Vgt) (Maximum) 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) 335A, 400A
Current - Gate Trigger (Igt) (Maximum) 50mA
Current - Hold (Ih) (Maximum) 75mA
Configuration Single
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Style Through Hole
Package TO-218-3, TO-218AC
Manufacturer Package TO-218 Isolated Tab
Manufacturer Homepage www.littelfuse.com
Win Source Part Number 733535-Q8040K5TP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian Q8040K5TP CAD Model

Description

The Q8040K5TP is a 40A 800V triac manufactured by Littelfuse Inc. It is designed for use in AC switching applications.

  • Current Rating: 335A/400A
  • Operating Temperature Range: -40°C to 125°C
  • Package: TO-218-3, TO-218AC
  • Configuration: Single
  • Supply Status: Limited
  • Alternatives: BTB41-800BRG, BTA445Z-800BTQ
