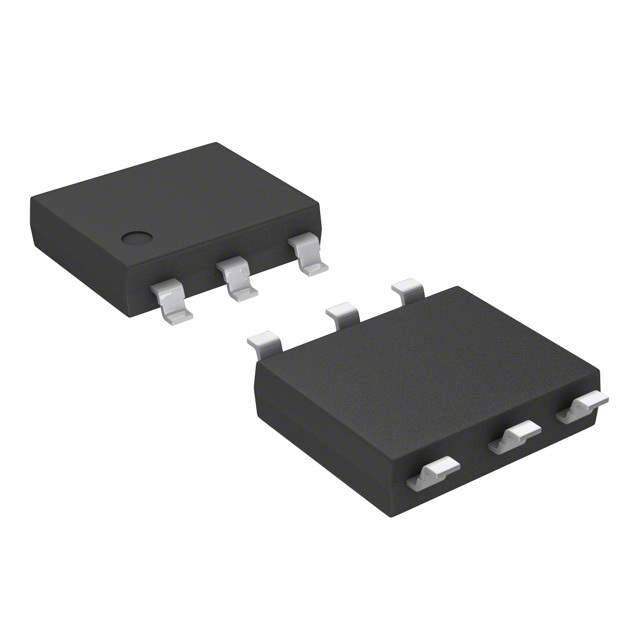

P1804UCLRP Real Image
Same model may have multiple batches, images only for reference.

P1804UCLRP

Part No P1804UCLRP
Manufacturer Littelfuse Inc.
Catalog TVS - Thyristors
Description SIDACTOR 4CHP 340V 400A MS013
Datasheet
P1804UCLRP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Voltage - Breakover 220V, 440V
Voltage - Off State 170V, 340V
Voltage - On State 4V
Current - Peak Pulse (8/20μs) 400A
Peak Pulse Current(Ippm) 100A
Current - Hold (Ih) 150mA
Number of Elements 4
Capacitance 50pF, 90pF
Mounting SMD (SMT)
Dimension 6-SMD, Gull Wing
Win Source Part Number 026241-P1804UCLRP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P1804UCLRP CAD Model

Description

The P1804UCLRP is a 4-element, 6-SMD, Gull Wing package designed for SMD (SMT) mounting from Littelfuse Inc.

  • Circuits: 4
  • Package: 6-SMD, Gull Wing
  • Mounting: SMD (SMT)
  • Capacitance: 50pF and 90pF
  • Off-State Voltage: 170V and 340V
  • Voltage Breakover: 220V and 440V
  • On-State Voltage: 4V
  • Peak Pulse Current: 400A
  • Hold Current: 150mA
