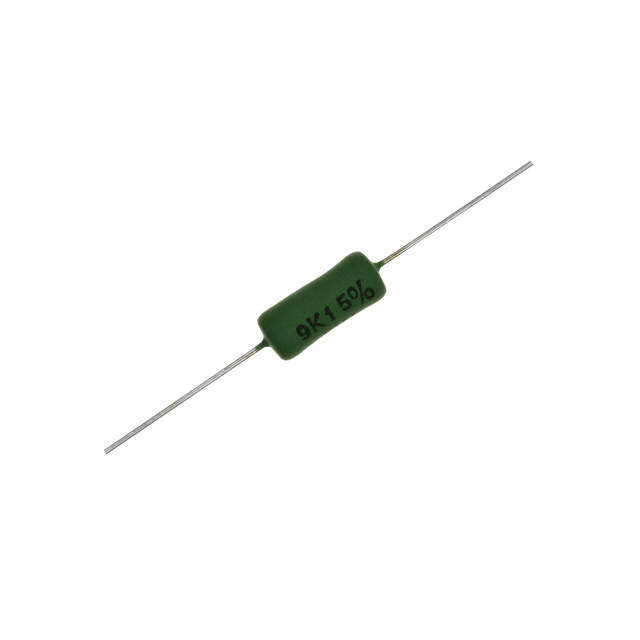

Same model may have multiple batches, images only for reference.
AC01000002201JA100 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AC01000002201JA100

Part No AC01000002201JA100
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 2.2K OHM 1W 5% AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 2.2 kOhms
Tolerance ±5%
Power (Watts) 1W
Composition Wirewound
Features Flame Retardant Coating, Pulse Withstanding, Safety
Temperature Coefficient 100/ +180ppm/°C
Temperature Range - Operating -40°C ~ 275°C
Case / Package Axial
Supplier Device Package Axial
Size / Dimension 0.169" Dia x 0.433" L (4.30mm x 11.00mm)
Number of Terminations 2
Package Cut Tape (CT)
Supply and Demand Status Shortage
Win Source Part Number 1596706-AC01000002201JA100
Ultra Librarian 3D Model Ultra Librarian AC01000002201JA100 CAD Model
