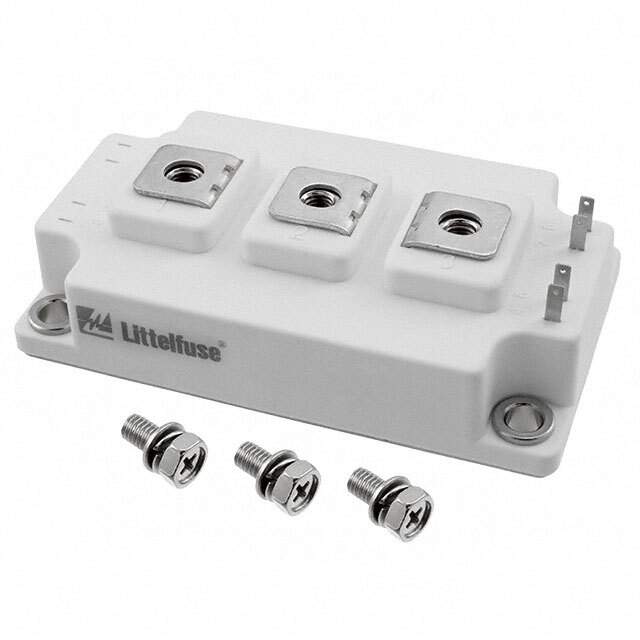

MG12400D-BN2MM Real Image
Same model may have multiple batches, images only for reference.

MG12400D-BN2MM

Part No MG12400D-BN2MM
Manufacturer Littelfuse Inc.
Catalog IGBTs - Modules
Description IGBT MODULE 1200V 580A 1925W D3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 9 Weeks
Features IGBT Module Trench Field Stop Half Bridge 1200 V 580 A 1925 W Chassis Mount D3
Manufacturer Littelfuse Inc.
Package Bulk
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Chassis Mount
Package Module
Case / Package D3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number F6484, -MG12400D-BN2MM
Quantity per package 60
Popularity High
Supply and Demand Status Balance
Win Source Part Number 926987-MG12400D-BN2MM
Ultra Librarian 3D Model Ultra Librarian MG12400D-BN2MM CAD Model

Description

The Littelfuse Inc. IGBT module is a high-performance electronic component designed for use in various applications.

  • Type: Trench Field Stop Half-Bridge
  • Maximum Voltage: 1200V
  • Maximum Current: 580A
  • Maximum Power: 1925W
  • Package Type: Bulk
  • Mounting Type: Chassis Mount
  • Operating Temperature: -40°C to 125°C
  • Used In: Discrete Semiconductor Products
  • Package Quantity: 60
  • MSL Level: 1 (Unlimited)
  • Production Lead Time: 9 Weeks
