Same model may have multiple batches, images only for reference.

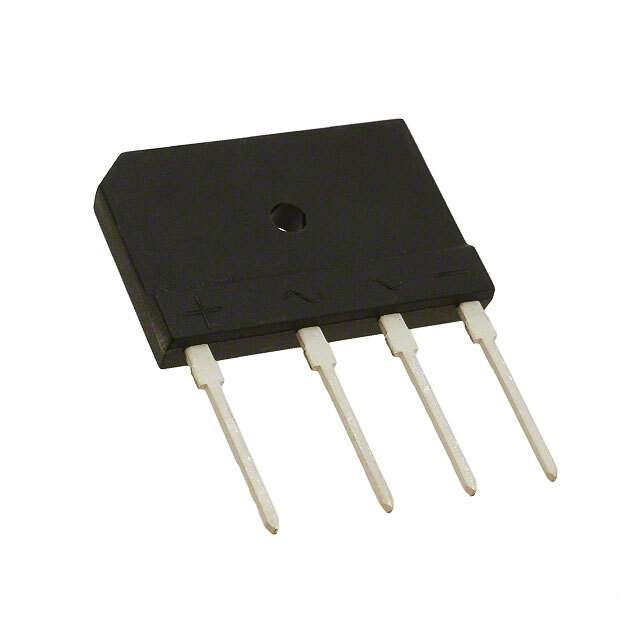

GBJ2010-BP Real Image
Same model may have multiple batches, images only for reference.

GBJ2010-BP

Part No GBJ2010-BP
Manufacturer Micro Commercial Co
Catalog Bridge Rectifiers
Description BRIDGE RECT 20A 1KV GBJ
Datasheet
GBJ2010-BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Micro Commercial Co
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 1.05V @ 10A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBJ
Win Source Part Number 1040812-GBJ2010-BP
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian GBJ2010-BP CAD Model

Description

The Micro Commercial Co 470939 is a single-phase standard diode type component with a maximum peak reverse voltage of 1000V.

  • Diode Type: Single-phase standard
  • Maximum Peak Reverse Voltage: 1000V
  • Average Rectified Current: 20A
  • Forward Voltage: 1.05V @ 10A
  • Mounting Technology: Through-hole
  • Case/Package: GBJ
  • Operating Temperature Range: -55°C to 150°C
  • Category: Discrete Semiconductor Products
  • Popularity: Medium
  • Packaging: Bulk
  • Quantity per Package: 1500
  • Current Leakage @ Reverse Voltage: 10μA @ 1000V
