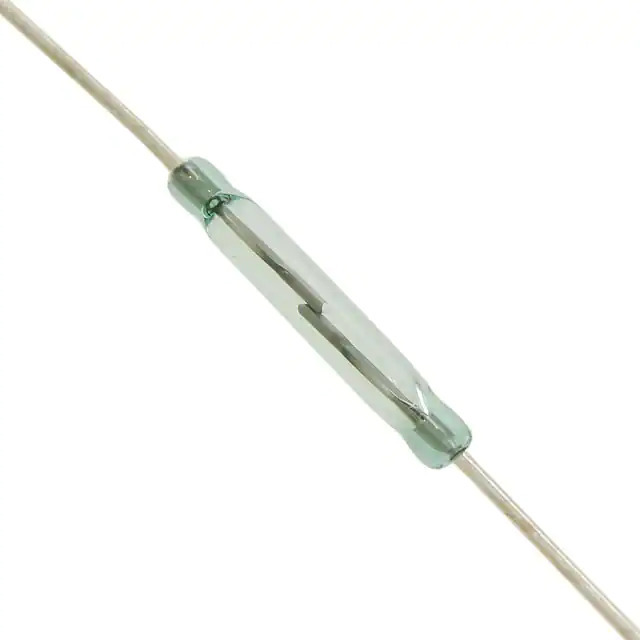

MDSR-7-10-15 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

MDSR-7-10-15

Part No MDSR-7-10-15
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Magnetic, Reed Switches
Mfr Littelfuse Inc.
Series MDSR-7
Package Bulk
Product Status Active
Type Glass Body Reed
Circuit SPST-NO
Operate Range 10 ~ 15AT
Release Range -
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Power - Rated 10W
Operate Time 0.6 ms
Release Time 0.2 ms
Mounting Type Through Hole
Termination Style Axial
Length - Overall 1.590" (40.39mm)
Size - Body 0.071" Dia x 0.500" L (1.80mm x 12.70mm)
Height Above Board -
Temperature Range - Operating -40°C ~ 125°C
Capacitance 0.3 pF
Current - Carry 800mA (DC)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1375873-MDSR-7-10-15
Ultra Librarian 3D Model Ultra Librarian MDSR-7-10-15 CAD Model

Description

The MDSR-7-10-15 is a glass body reed switch manufactured by Littelfuse Inc.

  • Temperature Range: -40°C to 125°C
  • Power Rating: 10W
  • Voltage (Max): 200V DC and 140V AC
  • Circuit Configuration: SPST-NO
  • Operate Time: 0.6ms
  • Release Time: 0.2ms
  • Size: 0.071" diameter and 0.500" length
  • Mounting Type: Through-Hole
  • Packaging: Bulk
  • Common Applications: Security Systems, Proximity Sensors, and Magnetic Door Switches
