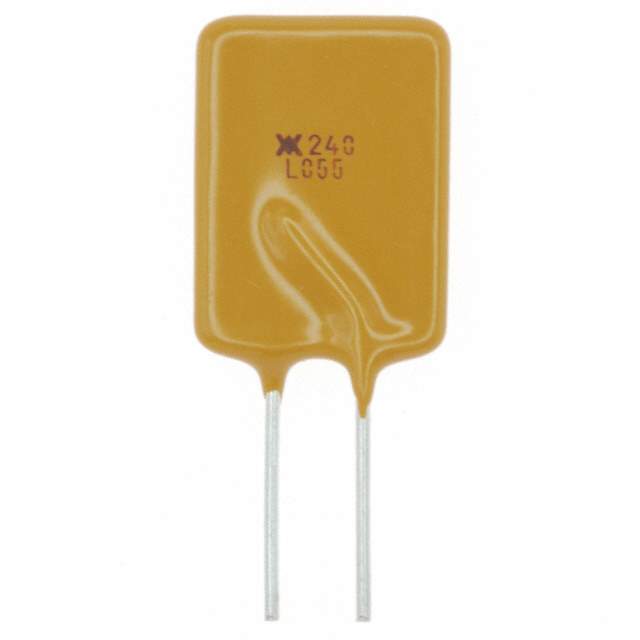

LVR055S Real Image
Same model may have multiple batches, images only for reference.

LVR055S

Part No LVR055S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 0.55A HOLD
Datasheet
LVR055S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 7A
Current - Hold (Ih) (Max) 550mA
Current - Trip (It) 1.25A
Time to Trip 26s
Resistance - Initial (Ri) (Min) 450 mOhm
Resistance - Post Trip (R1) (Max) 1.45 Ohm
Temperature Range - Operating -20°C to 85°C
Mounting Through Hole
Dimension 0.551" L x 0.161" W (14.00mm x 4.10mm)
Height - Seated (Max) 0.850" (21.70mm)
Lead Spacing 0.200" (5.08mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 1064548-LVR055S
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LVR055S CAD Model

Description

The Littelfuse Inc. 1064548-LVR055S is an active component that is moderately popular in the market.

  • Approvals: CQC, CSA, TUV, and UL
  • Voltage Range: 240V (265V Int)
  • Maximum Current: 7A
  • Time to Trip: 26s
  • Temperature Range (Operating): -20°C to 85°C
  • Type: Polymeric
