Same model may have multiple batches, images only for reference.

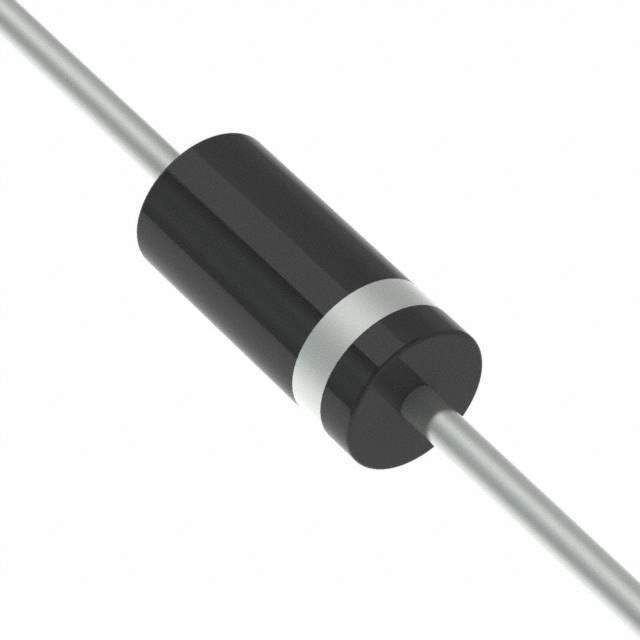

SA12A-B Real Image
Same model may have multiple batches, images only for reference.

SA12A-B

Part No SA12A-B
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Datasheet
SA12A-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SA
Package Bulk
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 19.9V
Current - Peak Pulse (10/1000µs) 25.6A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-15, Axial
Supplier Device Package DO-204AC (DO-15)
Other Names -SA12A-B
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1300788-SA12A-B
Ultra Librarian 3D Model Ultra Librarian SA12A-B CAD Model

Description

The SA series diode is a unidirectional TVS diode designed to protect electronic circuits from voltage transients.

  • Voltage Reverse Standoff: 12V
  • Voltage Breakdown: 13.3V
  • Maximum Voltage Clamping @ Ipp: 19.9V
  • Peak Pulse Power: 500W
  • Package: DO-204AC (DO-15)
  • Temperature Range (TJ): -55°C to 175°C
  • Application: General-purpose
  • Mounting: Through a hole
  • Capacitance @ Frequency: Not specified
  • Packaging: Bulk
  • Standard Package: 1,000
  • MSL Level: 1 (unlimited)
  • HTSUS: 8541.10.0080
  • Manufacturer: Littelfuse Inc.
