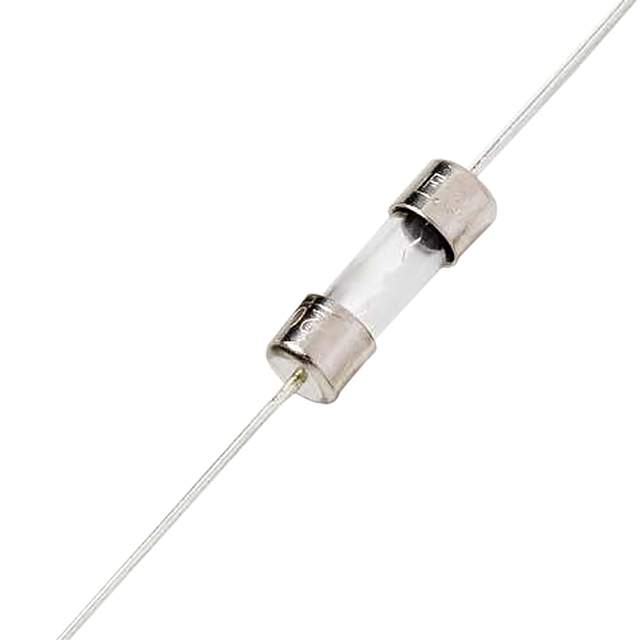

0209.500MXEP Real Image
Same model may have multiple batches, images only for reference.

0209.500MXEP

Part No 0209.500MXEP
Manufacturer Littelfuse Inc.
Catalog Fuses
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 209
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 500 mA
Voltage Rating - AC 350 V
Response Time Slow Blow
Package / Case 2AG, 5mm x 15mm (Axial)
Breaking Capacity @ Rated Voltage 100A
Melting I2t 1.16
Approval Agency CE, cULus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.185" Dia x 0.570" L (4.70mm x 14.48mm)
DC Cold Resistance 0.688 Ohms
Other Names -0209.500MXEP,0209.500MXEP,F4592,0209.500EP,1294-0209.500MXEP,0209500MXEP
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1301944-0209.500MXEP
Ultra Librarian 3D Model Ultra Librarian 0209.500MXEP CAD Model

Description

The Littelfuse Inc. 209 is a cartridge, glass type of fuse that falls under the category of circuit protection.

  • Voltage Rating: 350 V
  • Response Time: Slow blow
  • Breaking Capacity: 100A @ rated voltage
  • Melting I2t: 1.16
  • DC Cold Resistance: 0.688 Ohms
  • Standard Package: 1,000
  • Mounting Type: Through Hole
  • Package/Case: 2AG, 5mm x 15mm (Axial)
  • Operating Temperature: -55°C to 125°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating: 500 mA
  • HTSUS: 8536.10.0020
  • Other Names: -0209.500MXEP,0209.500MXEP,F4592,0209.500EP,1294-0209.500MXEP,0209500MXEP
  • Approval Agency: CE, cULus
