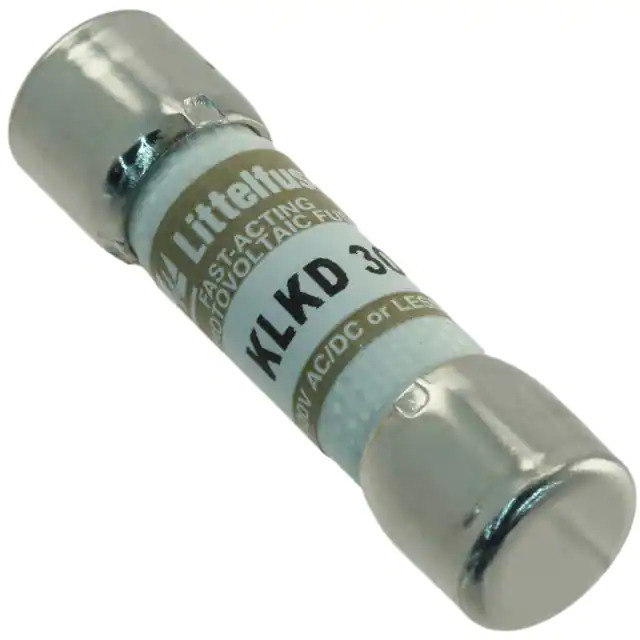

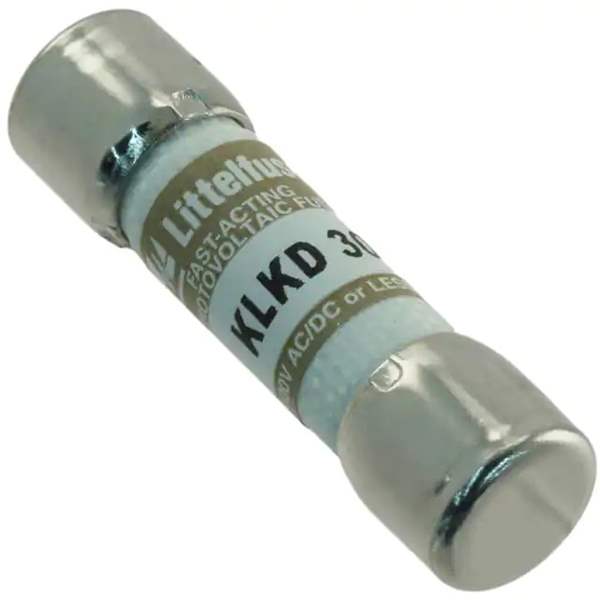

KLKD003.T Littelfuse Inc.
Same model may have multiple batches, images only for reference.

KLKD003.T

Part No KLKD003.T
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 3A 600VAC/VDC / 3A 600 V AC 600 V DC Fuse Cartridge Requires Holder
Datasheet
KLKD003.T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® KLKD
Package Box
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 3A
Voltage Rating - AC 600 V
Voltage Rating - DC 600 V
Response Time Fast Blow
Applications Solar (Photovoltaic)
Features -
Class -
Approval Agency CE, CSA, UL, VDE
Breaking Capacity @ Rated Voltage 100kA AC, 50kA DC
Package / Case Cartridge, Non-Standard
Size / Dimension 0.406" Dia x 1.500" L (10.31mm x 38.10mm)
Melting I²t 7.821
DC Cold Resistance 0.0773 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361442-KLKD003.T
Ultra Librarian 3D Model Ultra Librarian KLKD003.T CAD Model

Description

The KLKD003.T is a cartridge fuse from the POWR-GARD® KLKD series manufactured by Littelfuse Inc.

  • Application: Solar (Photovoltaic)
  • Current Rating: 3A
  • Voltage Rating: 600V AC and DC
  • Package: Cartridge, Non-Standard
  • Response Time: Fast Blow
  • Breaking Capacity (AC): 100kA AC @ Rated Voltage
  • Breaking Capacity (DC): 50kA DC @ Rated Voltage
  • Size: 0.406" Diameter x 1.500" Length
  • Approvals: CE, CSA, UL, and VDE
