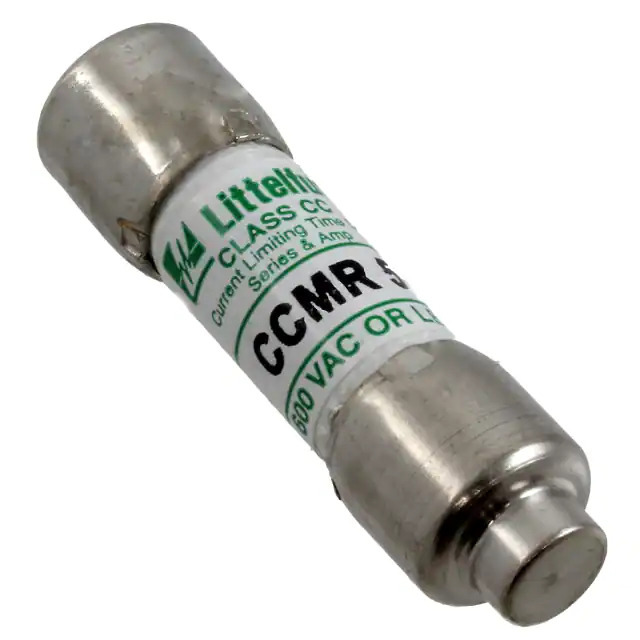

Same model may have multiple batches, images only for reference.
CCMR025.T Littelfuse Inc.
Same model may have multiple batches, images only for reference.

CCMR025.T

Part No CCMR025.T
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 25A 600VAC/500VDC
Datasheet
CCMR025.T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD®, POWR-PRO® CCMR
Package Bulk
Product Status Obsolete
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 25A
Voltage Rating - AC 600 V
Voltage Rating - DC 500 V
Response Time Slow Blow
Applications Motor Protection
Features -
Class CC
Approval Agency CE, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1378132-CCMR025.T
Ultra Librarian 3D Model Ultra Librarian CCMR025.T CAD Model

Description

The 1378132-CCMR025.T is a midget cartridge fuse from Littelfuse Inc.

  • Series: POWR-GARD®, POWR-PRO® CCMR
  • Package Size: 5AG, 10mm x 38mm
  • Current Rating: 25A
  • Voltage Rating: 600 V AC and 500 V DC
  • Application: Motor Protection
  • Response Time: Slow Blow
  • Breaking Capacity: 200kA AC and 20kA DC @ rated voltage
  • Approvals: CE and UL
