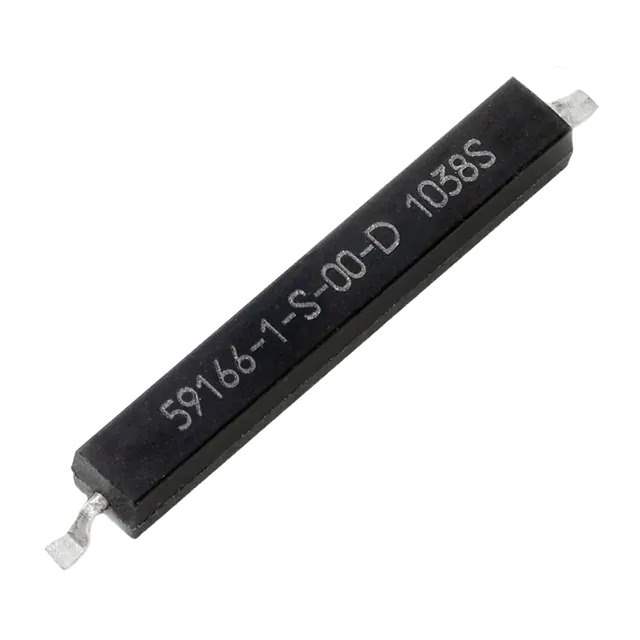

59166-1-S-00-D Real Image
Same model may have multiple batches, images only for reference.

59166-1-S-00-D

Part No 59166-1-S-00-D
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Magnetic, Reed Switches
Mfr Littelfuse Inc.
Series 59166
Package Tape & Reel
Product Status Active
Type Molded Body Reed
Circuit SPST-NO
Operate Range 10 ~ 15AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Power - Rated 10W
Operate Time 0.6 ms
Release Time 0.2 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Length - Overall 0.805" (20.45mm)
Size - Body 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm)
Height Above Board 0.099" (2.52mm)
Temperature Range - Operating -40°C ~ 125°C
Capacitance 0.3 pF
Current - Carry 800mA (DC)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 852046-59166-1-S-00-D
Ultra Librarian 3D Model Ultra Librarian 59166-1-S-00-D CAD Model

Description

The 852046-59166-1-S-00-D is a molded body reed switch in the 59166 series by Littelfuse Inc.

  • Series: 59166
  • Termination Style: Gull Wing
  • Package: Tape & Reel
  • Height Above Board: 0.099" (2.52mm)
  • Length - Overall: 0.805" (20.45mm)
  • Capacitance: 0.3 pF
  • Circuit: SPST-NO
  • Operate Time: 0.6 ms
  • Release Time: 0.2 ms
  • Power - Max: 10W
  • Operate Range: 10 ~ 15AT
  • Switching Current: 350mA (AC), 500mA (DC)
  • Switching Voltage: 140V (AC), 200V (DC)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C ~ 125°C
