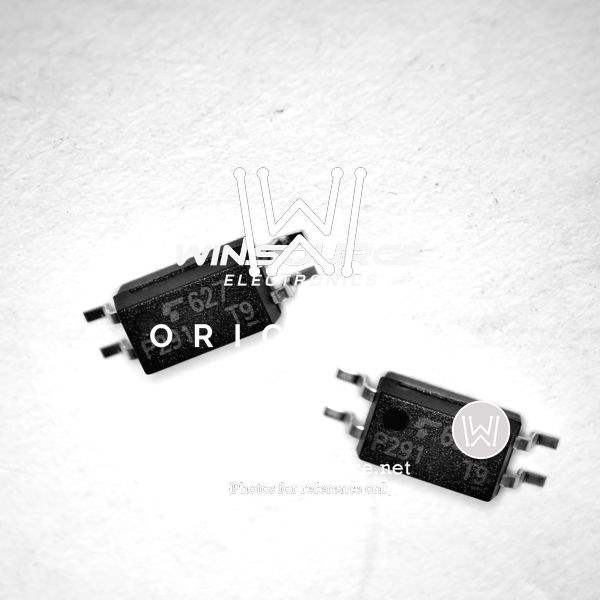

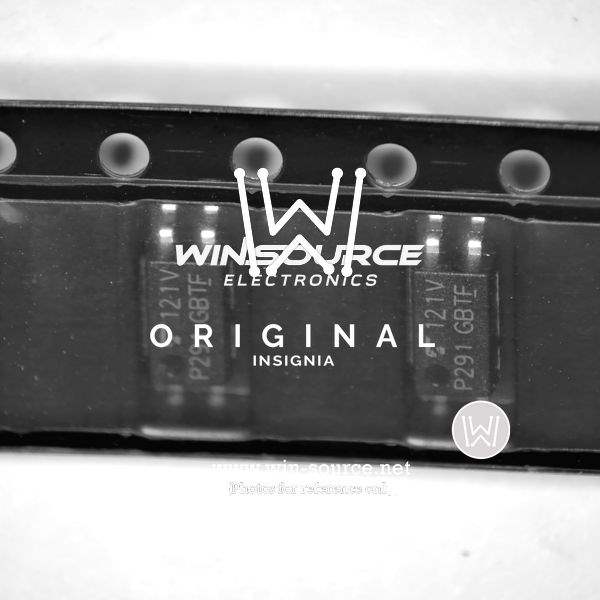

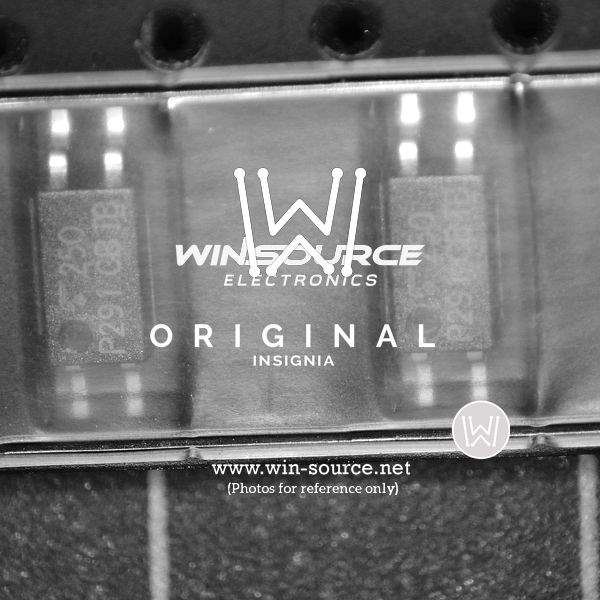

TLP291 Toshiba Semiconductor and Storage TLP291 real image7471 TLP291 Real Image1 TLP291 Real Image2 TLP291 Real Image3
Same model may have multiple batches, images only for reference.
TLP291 Toshiba Semiconductor and Storage TLP291 real image7471 TLP291 Real Image1 TLP291 Real Image2 TLP291 Real Image3
TLP291 Toshiba Semiconductor and Storage TLP291 real image7471 TLP291 Real Image1 TLP291 Real Image2 TLP291 Real Image3
Same model may have multiple batches, images only for reference.

TLP291

Part No TLP291
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 3.75KV TRANS 4-SO
Datasheet
TLP291 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Switching Turn-On and Turn-Off Time 7μs, 7μs
Rise and Fall Time 4μs, 7μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.25V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C to 110°C
Mounting SMD (SMT)
Case / Package 4-SO
Win Source Part Number 043178-TLP291
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLP291 CAD Model

Description

The Toshiba Semiconductor and Storage TLP291 is an active isolator that features a minimum DC current transfer ratio of 50% @ 5mA and a maximum DC current transfer ratio of 400% @ 5mA.

  • Minimum DC Current Transfer Ratio: 50% @ 5mA
  • Maximum DC Current Transfer Ratio: 400% @ 5mA
  • Switching Turn-On Time: 7μs
  • Switching Turn-Off Time: 7μs
  • Rise Time: 4μs
  • Fall Time: 7μs
  • Mounting Technology: SMD (SMT)
  • Packaging: Reel
  • Channel Output Current: 50mA
  • Continuous Forward Current: 50mA
  • Supply and Demand Status: Balanced
