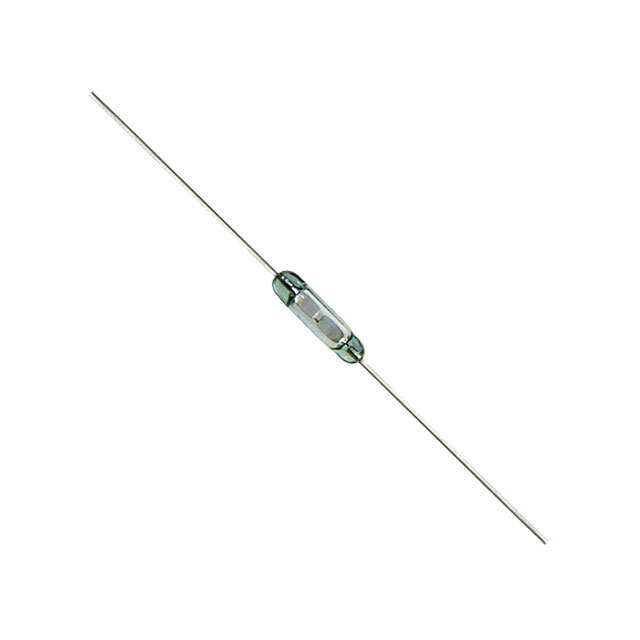

Same model may have multiple batches, images only for reference.
MDSR-7-10-20 Littelfuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MDSR-7-10-20

Part No MDSR-7-10-20
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 350MA 140V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Glass Body Reed
Circuit SPST-NO
Operate Range 10 ~ 20AT
Current - Switching 350mA (AC), 500mA (DC)
Voltage - Switching AC 140 V
Voltage - Switching DC 200 V
Power - Rated 10W
Operate Time 0.6 ms
Release Time 0.2 ms
Mounting Type Through Hole
Termination Style Axial
Length - Overall 1.590" (40.39mm)
Size - Body 0.071" Dia x 0.500" L (1.80mm x 12.70mm)
Temperature Range - Operating -40°C ~ 125°C
Capacitance 0.3 pF
Current - Carry 800mA (DC)
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1555740-MDSR-7-10-20
Ultra Librarian 3D Model Ultra Librarian MDSR-7-10-20 CAD Model
