Same model may have multiple batches, images only for reference.

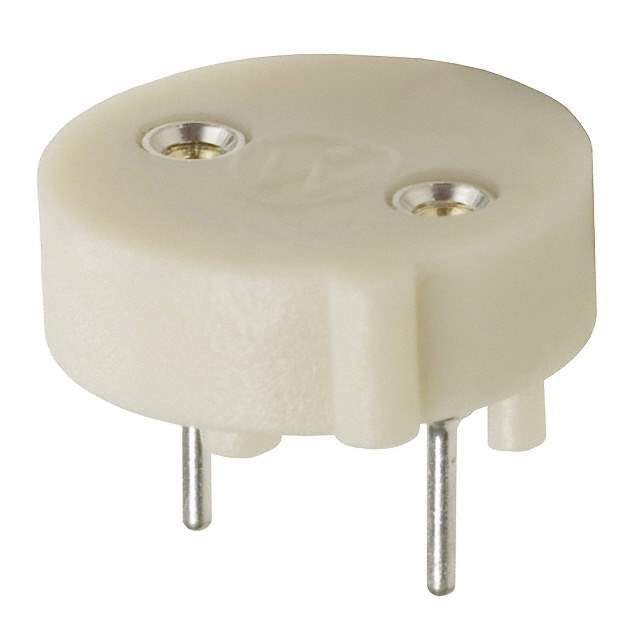

56000001319 Real Image
Same model may have multiple batches, images only for reference.

56000001319

Part No 56000001319
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HOLDER RADIAL 250V 6.3A PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Fuseholder Type Holder
Fuse Type Radial
For Use With/Related Products TE5, TR5
Fuse Size Radial 0.2" (5.08mm) pitch
Number of Circuits 1
Voltage 250V
Current Rating (Amps) 6.3A
Mounting Style Through Hole
Orientation Vertical
Termination Style PC Pin
Contact Material Copper Alloy
Contact Finish Tin
Manufacturer Pack Quantity 1,000
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809594-56000001319
Ultra Librarian 3D Model Ultra Librarian 56000001319 CAD Model

Description

The 809594-56000001319 is a radial fuse holder component manufactured by Littelfuse Inc. The manufacturer is Littelfuse Inc.

  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1,000
  • Mounting: Through Hole
  • Voltage: 250V
  • Current Rating: 6.3A
  • Used With: TE5, TR5
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
