Same model may have multiple batches, images only for reference.

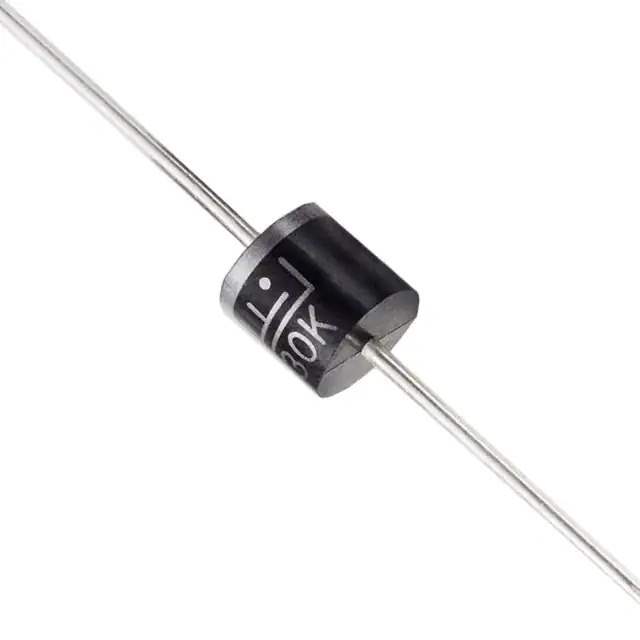

15KP70 Real Image
Same model may have multiple batches, images only for reference.

15KP70

Part No 15KP70
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 70VWM 119.7VC P600
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series 15KP
Package Bulk
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 70V
Voltage - Breakdown (Min) 73.52V
Voltage - Clamping (Max) @ Ipp 119.7V
Power - Peak Pulse 15000W (15kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case P600, Axial
Supplier Device Package P600
Base Product Number 15KP
Standard Package 800 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 538669-15KP70
Ultra Librarian 3D Model Ultra Librarian 15KP70 CAD Model

Description

The 538669-15KP70 is a TVS diode from Littelfuse Inc.

  • Series: 15KP
  • Type: Unidirectional
  • Reverse Standoff Voltage: 70V
  • Breakdown Voltage: 73.52V (min)
  • Clamping Voltage: 119.7V @ peak pulse current of 15kW
  • Package: Bulk
  • Mounting: Through-hole P600 axial package
  • Operating Temperature: -55°C to 175°C
  • Product Status: Obsolete
