UPJ2A220MPD1TD Nichicon – Price, Stock & Datasheet

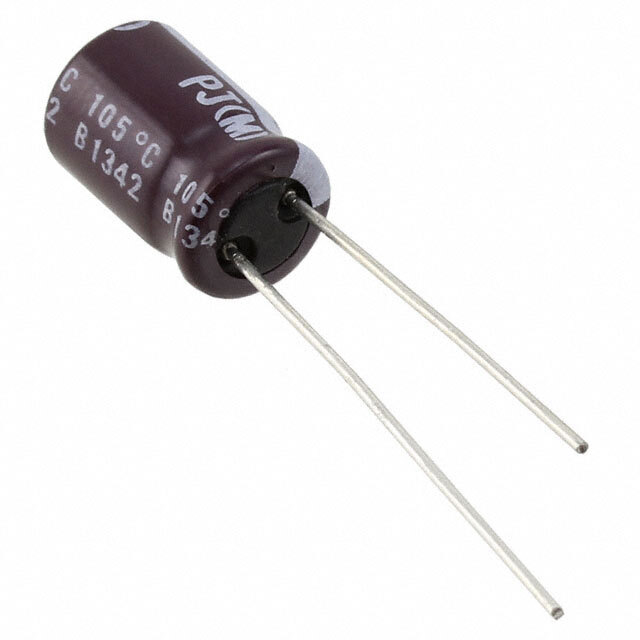

Same model may have multiple batches, images only for reference.

UPJ2A220MPD1TD

Part No UPJ2A220MPD1TD
Manufacturer Nichicon
Catalog Aluminum Electrolytic Capacitors
Description CAP ALUM 22UF 20% 100V RADIAL TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category CapacitorsAluminum Electrolytic Capacitors
Mfr Nichicon
Series UPJ
Packaging Cut Tape (CT)Tape & Box (TB)
Part Status Not For New Designs
Capacitance 22 μF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 122 mA @ 120 Hz
Ripple Current @ High Frequency 230 mA @ 10 kHz
Impedance 550 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Ultra Librarian 3D Model Ultra Librarian UPJ2A220MPD1TD CAD Model
