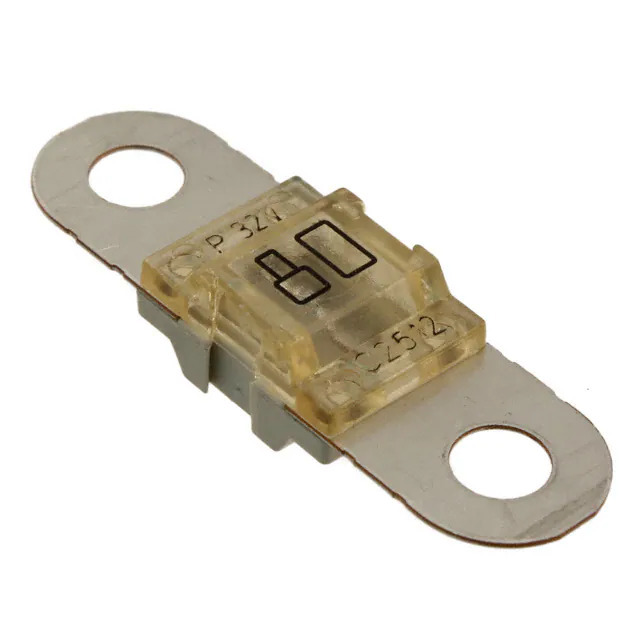

153.5631.5801 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

153.5631.5801

Part No 153.5631.5801
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 80A 32VDC AUTO LINK / 80 A AC 32 V DC Fuse Automotive Bolt Mount Auto Link
Datasheet
153.5631.5801 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series BF1
Package Bulk
Product Status Active
Mounting Type Bolt Mount
Fuse Type Automotive
Current Rating (Amps) 80 A
Voltage Rating - DC 32 V
Response Time Slow Blow
Package / Case Auto Link
Breaking Capacity @ Rated Voltage 2kA
Melting I²t 25600
Approval Agency ISO, UL
Color Clear
Size / Dimension 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm)
DC Cold Resistance 0.00055 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361590-153.5631.5801
Ultra Librarian 3D Model Ultra Librarian 153.5631.5801 CAD Model

Description

The BF1 series by Littelfuse Inc. is a circuit protection fuse.

  • Fuse Type: Automotive
  • Current Rating: 80A
  • Voltage Rating: 32V DC
  • Fuse Type: Auto Link
  • Response Time: Slow Blow
  • Breaking Capacity @ Rated Voltage: 2kA
  • Size / Dimension: 16.00mm x 12.00mm x 8.20mm
  • Color: Clear
  • Approval Agency: ISO, UL
  • REACH Status: Unaffected
  • ECCN: EAR99
  • DC Cold Resistance: 0.00055 Ohms
