Same model may have multiple batches, images only for reference.

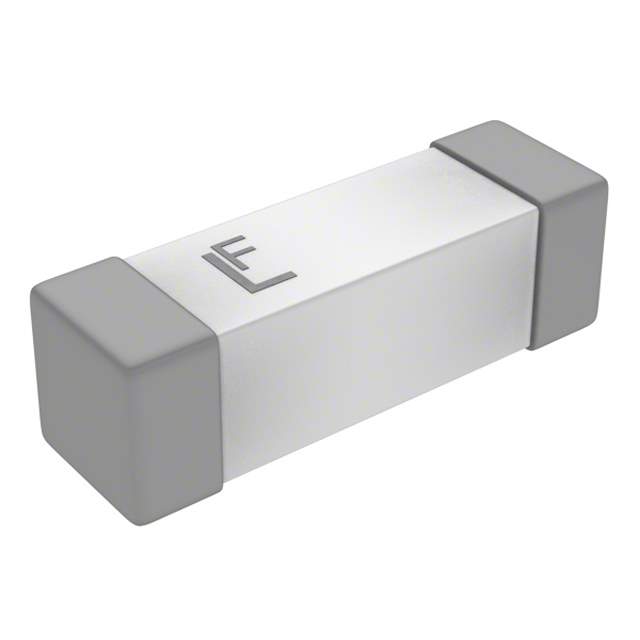

04643.15DR Real Image
Same model may have multiple batches, images only for reference.

04643.15DR

Part No 04643.15DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 3.15A 250VAC 2SMD
Datasheet
04643.15DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 3.15A
Voltage Rating - AC 250V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 100A
Nominal Melting - I2t 8.05
Approvals PSE, UMF
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.0206 Ohm
Win Source Part Number 074863-04643.15DR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 04643.15DR CAD Model

Description

Product Overview

The 04643.15DR is a high-performing electronic component ideal for integration in various technical applications. Engineered for efficiency, it delivers exceptional utility across numerous fields.

Features and Benefits

  • Engineered for high efficiency
  • Excellent performance consistency
  • Compact design for ease of integration

Applications

  • Industrial electronics
  • Embedded systems
  • Research and development projects

Additional Details

This component is crafted to integrate seamlessly with complex systems, providing a reliable performance boost.
