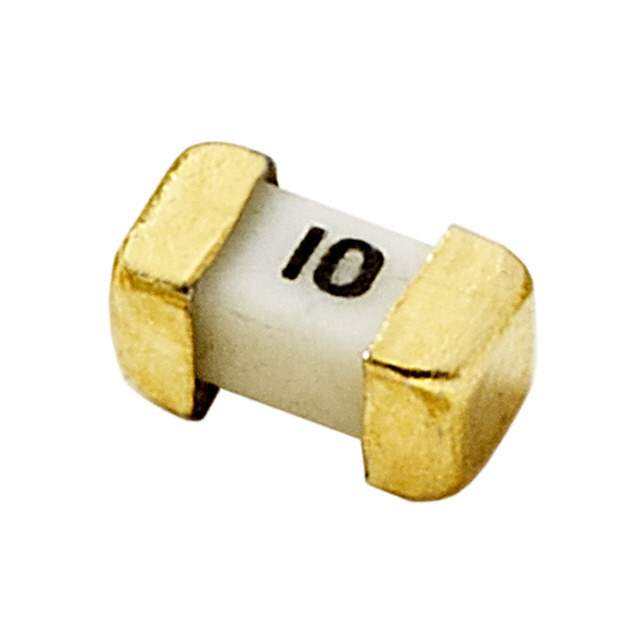

045806.3DR Littelfuse Inc. 045806.3DR Real Image 045806.3DR label picture
Same model may have multiple batches, images only for reference.
045806.3DR Littelfuse Inc. 045806.3DR Real Image 045806.3DR label picture
045806.3DR Littelfuse Inc. 045806.3DR Real Image 045806.3DR label picture
Same model may have multiple batches, images only for reference.

045806.3DR

Part No 045806.3DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Surface Mount Fuses
Datasheet
045806.3DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series NANO² 458
Packaging Reel - TR
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 6.3A
Voltage Rating - AC 32V
Voltage Rating - DC 75V
Response Time Fast
Package 1206 (3216 Metric)
Mounting SMD
Breaking Capacity @ Rated Voltage 50A
Melting I2t 14.37
Approvals cULus
Operating Temperature Range -55°C ~ 125°C
Size 0.125" L x 0.062" W x 0.062" H (3.18mm x 1.58mm x 1.58mm)
Resistance 0.0192 Ohm
Win Source Part Number 1120660-045806.3DR
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 045806.3DR CAD Model

Description

The Littelfuse 1120660-045806.3DR is a circuit protection electronic component categorized under Circuit Protection.

  • Product Series: NANO² 458
  • Mounting Type: SMD
  • Package: 1206 (3216 Metric)
  • Current Rating: 6.3A
  • Voltage Rating (AC): 32V
  • Voltage Rating (DC): 75V
  • Response Time: Fast
  • Breaking Capacity (Rated Voltage): 50A
  • Melting I2t: 14.37
  • Approval: cULus
  • Operating Temperature Range: -55°C to 125°C
