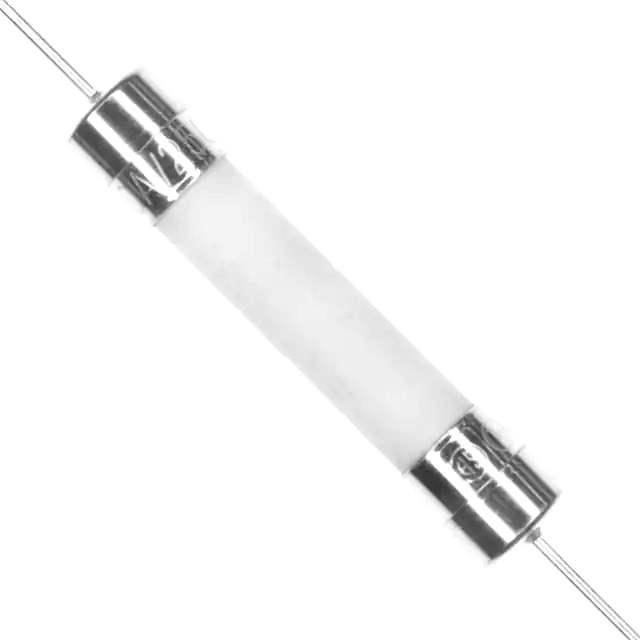

0325025.MXP Real Image
Same model may have multiple batches, images only for reference.

0325025.MXP

Part No 0325025.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 25A 125VAC/VDC 3AB 3AG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 325
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 25 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 400A AC, 600A DC
Melting I2t 1030
Approval Agency CE, CSA, K-MARK, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.275" Dia x 1.288" L (6.99mm x 32.72mm)
DC Cold Resistance 0.0024 Ohms
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 853163-0325025.MXP
Ultra Librarian 3D Model Ultra Librarian 0325025.MXP CAD Model

Description

The 853163-0325025.MXP is a 25A cartridge ceramic fuse from the 325 series manufactured by Littelfuse Inc..

  • Voltage Rating: 125V AC and 125V DC
  • Response Time: Slow blow
  • Breaking Capacity @ Rated Voltage: 400A AC and 600A DC
  • Size: 0.275" Dia x 1.288" L
  • DC Cold Resistance: 0.0024 Ohms
  • Mounting Type: Through-hole
  • Package: Bulk package of 1,000 pcs
  • Operating Temperature: -55°C to 125°C
  • Approvals: CE, CSA, K-MARK, PSE, and UL
  • Market Status: Active
