Same model may have multiple batches, images only for reference.

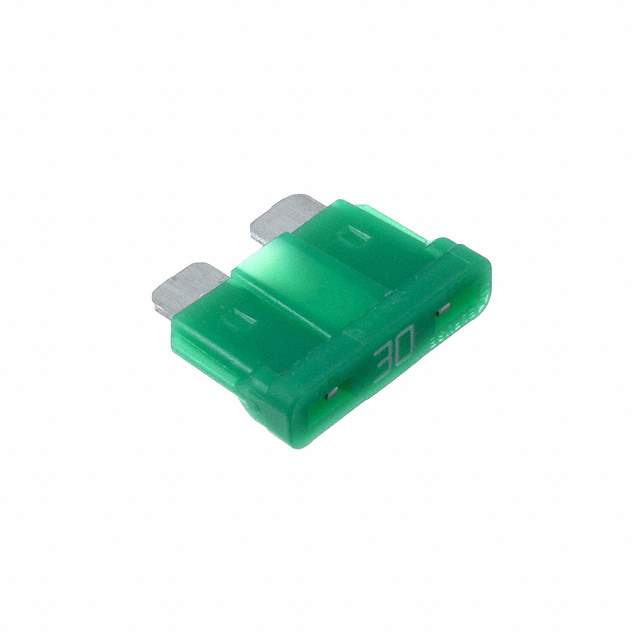

0257030.PXAPCRT Real Image
Same model may have multiple batches, images only for reference.

0257030.PXAPCRT

Part No 0257030.PXAPCRT
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 30A 32VDC SHORT BLADE / 30 A AC 32 V DC Fuse Automotive Holder Blade, ATO/ATC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series ATO®
Package Bulk
Mounting Type Holder
Fuse Type Automotive
Current Rating (Amps) 30 A
Voltage Rating - DC 32 V
Package / Case Blade, ATO/ATC
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 1510
Approval Agency cULus
Temperature Range - Operating -40°C ~ 105°C
Color Green
Dimension 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm)
DC Cold Resistance 0.00197 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names F11048,257030PXAPCRT,-0257030.PXAPCRT,0257030.PXAPCRT-ND,0257030PXAPCRT,257030.PXAPCRT
Standard Package 4,000
Win Source Part Number 1115063-0257030.PXAPCRT
Ultra Librarian 3D Model Ultra Librarian 0257030.PXAPCRT CAD Model

Description

The 0257030.PXAPCRT is a fuse that is designed for use in circuit protection.

  • Manufacturer: Littelfuse Inc.
  • Package: Blade, ATO/ATC
  • Color: Green
  • Voltage Rating: 32 V
  • Maximum Breaking Capacity: 1kA
  • Melting I2t: 1510
  • DC Cold Resistance: 0.00197 Ohms
  • Current Rating: 30 A
  • Mounting: Holder
  • Temperature Range: -40°C to 105°C
