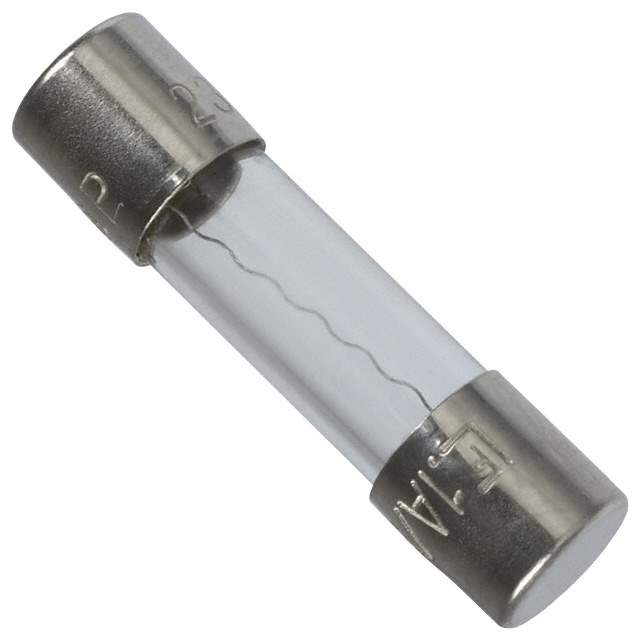

0234002.M Real Image
Same model may have multiple batches, images only for reference.

0234002.M

Part No 0234002.M
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Axial Lead and Cartridge Fuses - Designed to UL/CSA Standards | FUSE GLASS 2A 250VAC 5X20MM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Obsolete
Fuse Type Cartridge, Glass
Current Rating (Amps) 2A
Voltage Rating - AC 250V
Response Time Medium Blow
Manufacturer Package 5mm x 20mm
Mounting Style Holder
Breaking Capacity at Rated Voltage 100A
Melting I2t 10.2
Approvals CSA, K-MARK, METI, UL
Parts Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.068 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1120546-0234002.M
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0234002.M CAD Model

Description

The Littelfuse Inc. 1120546-0234002.M is a cartridge, glass type fuse that has a voltage rating of 250V.

  • Manufacturer: Littelfuse Inc.
  • Part Number: 1120546-0234002.M
  • Fuse Type: Cartridge, Glass
  • Voltage Rating: 250V
  • Package Size: 5mm x 20mm
  • Response Time: Medium Blow
  • Approvals: CSA, K-MARK, METI, UL
  • DC Cold Resistance: 0.068 Ohms
  • Manufacturer Package Quantity: 1,000 units
  • MSL Level: 1 (Unlimited)
  • Current Rating: 2A
  • Breaking Capacity @ Rated Voltage: 100A
