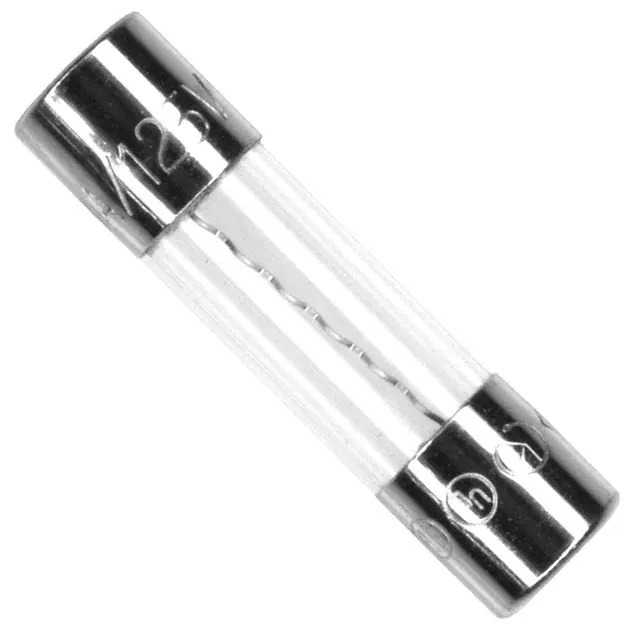

02323.15MXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

02323.15MXP

Part No 02323.15MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 3.15A 250VAC 5X20MM / 3.15 A 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 232
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 3.15 A
Voltage Rating - AC 250 V
Response Time Medium Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 100A
Melting I²t 21.95
Approval Agency CE, KC, PSE
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0215 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361300-02323.15MXP
Ultra Librarian 3D Model Ultra Librarian 02323.15MXP CAD Model

Description

The 1361300-02323.15MXP is a cartridge glass fuse from Littelfuse Inc. It is part of the 232 series and has a package size of 5mm x 20mm.

  • Voltage Rating: 250V AC
  • Current Rating: 3.15A
  • Response Time: Medium Blow
  • Breaking Capacity: 100A @ rated voltage
  • Melting I²t: 21.95
  • Approvals: CE, KC, PSE
  • Mounting: Requires Holder
  • DC Cold Resistance: 0.0215 Ohms
