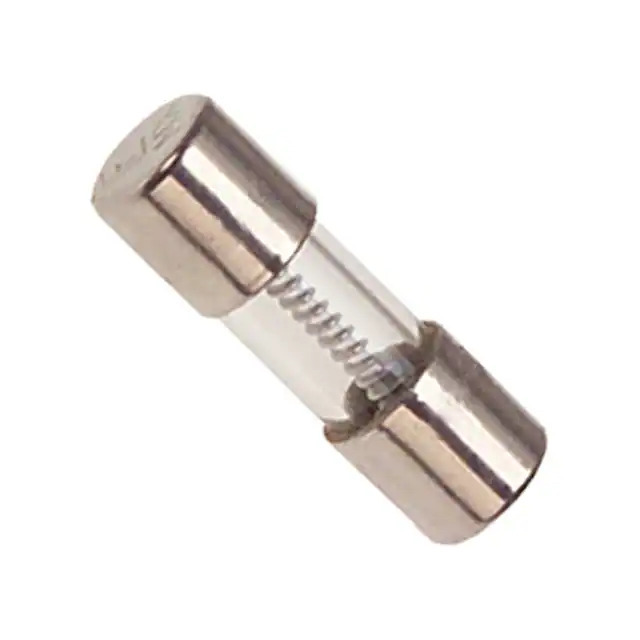

0229005.HXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0229005.HXP

Part No 0229005.HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 5A 125VAC/VDC 2AG / 5 A 125 V AC 125 V DC Fuse Cartridge, Glass Requires Holder 2AG, 5mm x 15mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 229
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 5 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2AG, 5mm x 15mm
Breaking Capacity @ Rated Voltage 400A
Melting I²t 267
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.177" Dia x 0.570" L (4.50mm x 14.48mm)
DC Cold Resistance 0.0186 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361378-0229005.HXP
Ultra Librarian 3D Model Ultra Librarian 0229005.HXP CAD Model

Description

The Littelfuse Inc. 229 series cartridge glass fuse is designed for circuit protection in electronic devices.

  • Current Rating: 5A
  • Voltage Rating: 125V AC/DC
  • Response Time: Slow Blow
  • Breaking Capacity: 400A @ the rated voltage
  • Size: 2AG, 5mm x 15mm
  • Packaging: Bulk
  • Mounting Type: Holder
  • Approvals: CE, CSA, PSE, and UL
