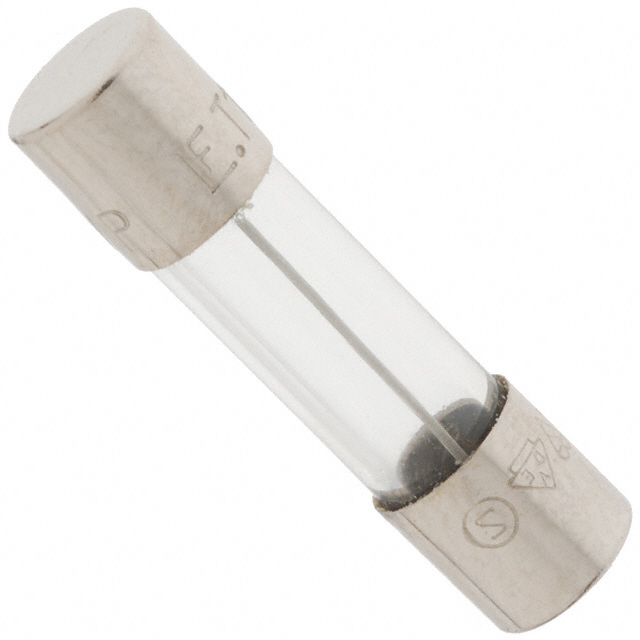

Same model may have multiple batches, images only for reference.
02183.15HXP Littelfuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

02183.15HXP

Part No 02183.15HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 3.15A 250VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionFuses
Mfr Littelfuse Inc.
Series 218
Packaging Bulk
Part Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 3.15 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 35A
Melting I2t 38.15
Approval Agency CCC, CE, CSA, K-MARK, PSE, SEMKO, UL, VDE
Operating Temperature -55°C ~ 125°C
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0173 Ohms
Ultra Librarian 3D Model Ultra Librarian 02183.15HXP CAD Model
