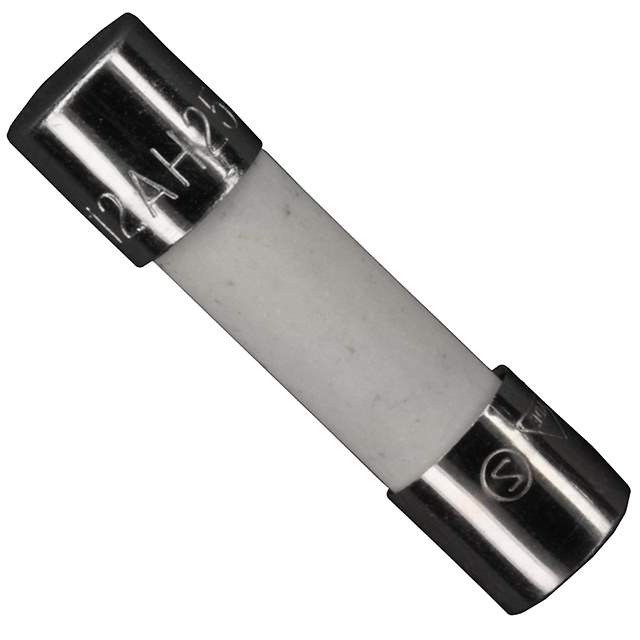

0215005.MXB941P Real Image
Same model may have multiple batches, images only for reference.

0215005.MXB941P

Part No 0215005.MXB941P
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERAMIC 5A 250VAC 5X20MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 5A
Voltage Rating - AC 250V
Response Time Slow Blow
Manufacturer Package Radial Bend Cylinder
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 1.5kA
Melting I2t 66.095
Approvals CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0153 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 721239-0215005.MXB941P
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0215005.MXB941P CAD Model

Description

The 721239-0215005.MXB941P from Littelfuse Inc. is a slow-blow cartridge ceramic fuse with a voltage rating of 250V and a current rating of 5A.

  • DC cold resistance: 0.0153 Ohms.
  • Breaking capacity @ rated voltage: 1.5kA.
  • Fuse is: through-hole mountable.
  • Has a manufacturer package of: radial bend cylinder.
  • Temperature range for operation: -55°C to 125°C.
