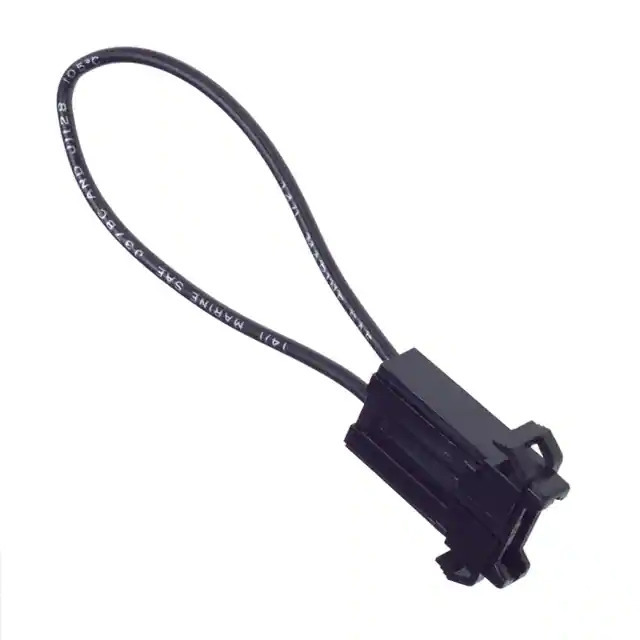

01550300Z Littelfuse Inc.
Same model may have multiple batches, images only for reference.

01550300Z

Part No 01550300Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR BLADE 32V 20A PNL MNT / Fuse Holder 20 A 32V 1 Circuit Blade Panel Mount
Datasheet
01550300Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 155
Package Bulk
Product Status Active
Mounting Type Panel Mount
Fuse Size 0.75" L x 0.2" W (19.1mm x 5.1mm)
Current Rating (Amps) 20 A
For Use With/Related Products ATC, ATO
Fuse Type Blade
Fuseholder Type Holder
Number of Circuits 1
Voltage 32V
Orientation -
Termination Style Wire Leads
Contact Material Brass
Contact Finish Tin
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361518-01550300Z
Ultra Librarian 3D Model Ultra Librarian 01550300Z CAD Model

Description

The 155 series fuseholder, part number 1361518-01550300Z, is a panel mount holder manufactured by Littelfuse Inc.

  • Fuse Compatibility: ATC and ATO blade fuses
  • Current Rating: 20A
  • Voltage Rating: 32V
  • Finish: Tin
  • Material: Brass
  • Termination: Wire Leads
  • Mounting: Panel Mounting
  • REACH Compliance: Unaffected
  • Product Status: Active
  • Application: Circuit Protection
