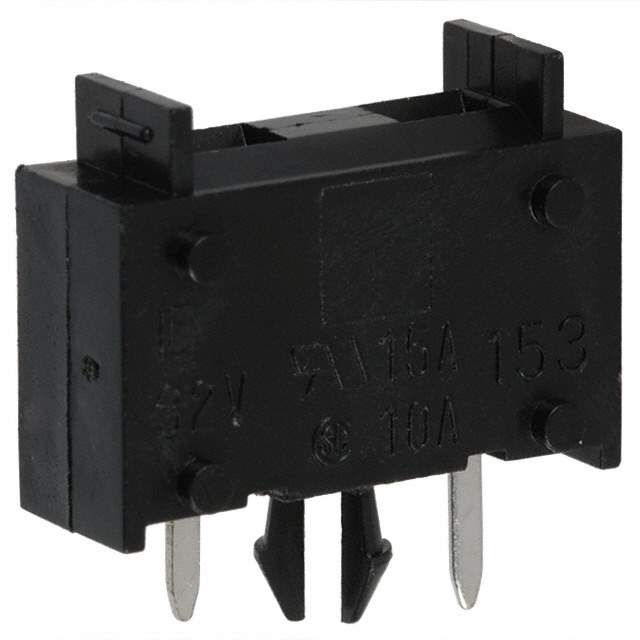

01530008Z Littelfuse Inc. 01530008Z Real Image
Same model may have multiple batches, images only for reference.
01530008Z Littelfuse Inc. 01530008Z Real Image
01530008Z Littelfuse Inc. 01530008Z Real Image
Same model may have multiple batches, images only for reference.

01530008Z

Part No 01530008Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HOLDER BLADE 32V 15A PCB / PCB MOUNT FUSE HOLDER FOR MINI STYLE BLADE FUSE
Datasheet
01530008Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Fuseholder Type Holder
Fuse Type Blade
For Use With/Related Products MINI ATC, MINI ATO
Fuse Size 0.43" L x 0.15" W x 0.64" H (10.92mm x 3.81mm x 16.25mm)
Number of Circuits 1
Voltage 32V
Current Rating (Amps) 15A
Mounting Style Through Hole
Orientation Vertical
Termination Style PC Pin
Contact Material Copper Alloy
Contact Finish Tin
Manufacturer Pack Quantity 500
MSL Level Not Applicable
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806621-01530008Z
Ultra Librarian 3D Model Ultra Librarian 01530008Z CAD Model

Description

The Littelfuse Inc. 806621-01530008Z is a blade type fuse holder for MINI ATC and MINI ATO fuses.

  • Mounting Style: Through-hole
  • Termination Style: PC pin
  • Contact Material: Copper alloy
  • Contact Finish: Tin
  • Circuits: Single
  • Voltage Rating: 32V
  • Fuse Size: 0.43" L x 0.15" W x 0.64" H (10.92mm x 3.81mm x 16.25mm)
  • Package: 500 holders
