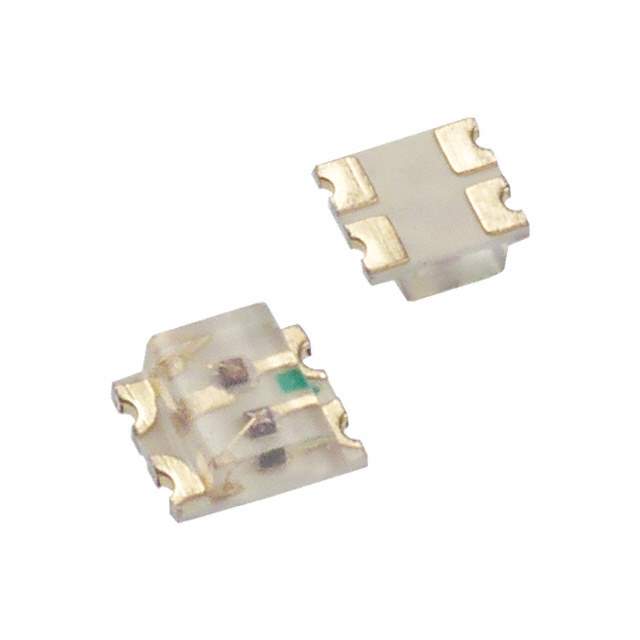

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Lite-On Inc.
Packaging Reel - TR
Status Active
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 112.5mcd Red, 281mcd Green, 104mcd Blue
Lens Style/Size Rectangle with Flat Top, 1.15mm x 1.60mm
Forward Voltage 2.1V Red, 3.35V Green, 3.35V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 130°
Mounting SMD (SMT)
Wavelength - Dominant 624nm Red, 525nm Green, 470nm Blue
Wavelength - Peak 632nm Red, 520nm Green, 468nm Blue
Case / Package Chip LED
Height (Max) 0.35mm
Win Source Part Number 095421-LTST-C19HE1WT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian LTST-C19HE1WT CAD Model

Description

The Lite-On Inc. LTST-C19HE1WT is a chip LED designed for use in a variety of optoelectronic applications.

Key Features:

  • Configuration: Common anode
  • Colors: Red, green, and blue (RGB)
  • Forward Voltage: 2.1V (red), 3.35V (green and blue)
  • Viewing Angle: 130 degrees

Applications: Backlighting, status indicators, and automotive lighting
