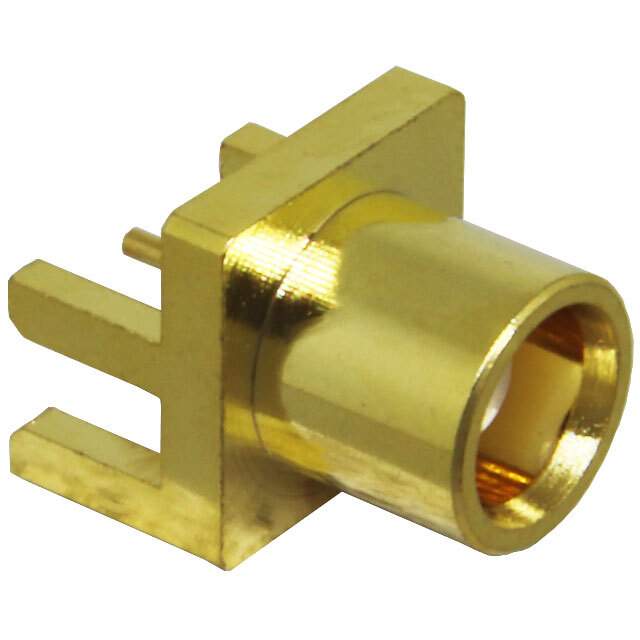

CONMCX003.062 Real Image
Same model may have multiple batches, images only for reference.

CONMCX003.062

Part No CONMCX003.062
Manufacturer Linx Technologies Inc.
Catalog Coaxial Connectors (RF)
Description CONN MCX RCPT STR 50OHM EDGE MNT / Conn MCX F Solder ST Edge Mount Gold
Datasheet
CONMCX003.062 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Linx Technologies Inc.
Packaging Bulk
Connector Style MCX
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Board Edge, End Launch
Fastening Type Snap-On
Frequency - Max 6GHz
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Operating Temperature Range -65°C ~ 165°C
Center Contact Material Beryllium Copper
Mating Cycles 500
Insertion Loss 0.1dB
Win Source Part Number 771940-CONMCX003.062
Popularity Medium
Supply and Demand Status Limited
Family Name CONMCX003
Introduction Date May 21, 2007
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CONMCX003.062 CAD Model

Description

The CONMCX003.062 from Linx Technologies Inc. is a high-quality connector.

  • Connector Type: Receptacle, Female Socket
  • Fastening Type: Snap-on
  • Contact Termination: Solder
