Products specifications

Categories RF/IF and RFID
Manufacturer Linear Technology
Packaging Tray
Function Pre-Distortion Receiver Subsystem
Frequency 184MHz
RF Type General
Secondary Attributes Down Converter

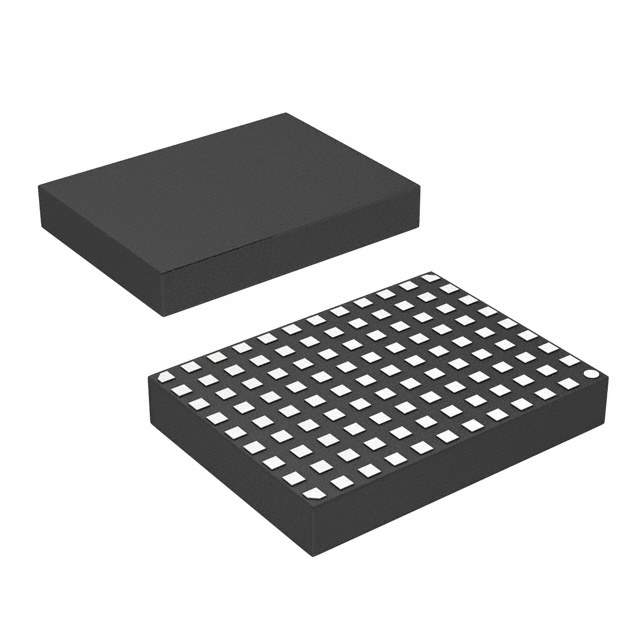

Package 108-LGA
Manufacturer Package 108-LGA (15x11.25)
Win Source Part Number 784659-LTM9003CV-AA#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LTM9003
Introduction Date July 10, 2009
ECCN 5A991.b
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LTM9003CV-AA#PBF CAD Model

Description

Introducing the LTM9003CV-AA#PBF from Linear Technology

The LTM9003CV-AA#PBF is a high-performance, integrated RF-to-digital µModule® receiver designed by Linear Technology, which is now part of Analog Devices. This innovative product is tailored for demanding communications applications that require precise signal acquisition and processing. Combining a high-performance mixer with a 14-bit, 125Msps ADC, the LTM9003CV-AA#PBF is an ideal solution for a wide range of wireless and wired communication systems.

Key Features

  • Integrated RF-to-Digital Conversion: The LTM9003CV-AA#PBF simplifies design and reduces time-to-market by integrating a high linearity mixer, filter, and analog-to-digital converter into a single compact package.
  • High Performance: With a 14-bit, 125Msps ADC, this µModule receiver provides excellent dynamic performance for capturing high-frequency signals with great accuracy.
  • Wide Input Frequency Range: The device is designed to operate over a broad frequency range, making it suitable for a variety of RF applications.
  • Low Power Consumption: It is engineered to maintain performance while minimizing power consumption, an essential feature for portable and battery-powered applications.
  • Easy Integration: The LTM9003CV-AA#PBF comes in a compact, surface-mount LGA package, which allows for easy integration into existing designs without the need for complex routing or additional RF components.

Applications

  • Wireless Infrastructure
  • Remote Radio Heads
  • Software-Defined Radios
  • Communications Test Equipment
  • Satellite Communications

The LTM9003CV-AA#PBF is engineered to meet the rigorous demands of modern RF systems. Its integrated design reduces the number of external components required, which helps to streamline the design process, reduce bill of materials costs, and improve reliability by minimizing interconnects. Whether you're developing infrastructure for next-generation wireless networks or creating sophisticated test equipment, the LTM9003CV-AA#PBF offers a combination of performance, integration, and ease of use that can help you bring your products to market faster and more efficiently.

Choose the LTM9003CV-AA#PBF for your next project and leverage the quality and performance that Linear Technology's products are renowned for.
