The LTM9002CV-AA#PBF is a complete system-in-package (SiP) that incorporates a high-performance ADC (Analog-to-Digital Converter) with integrated signal conditioning circuitry, designed and manufactured by Linear Technology. This SiP is tailored for demanding applications in communications, imaging, and medical equipment where precise and rapid signal processing is paramount.
Key Features
- Integrated ADC: The core of the LTM9002CV-AA#PBF is a 14-bit, 125Msps ADC, offering excellent dynamic performance and ensuring accurate digital representation of analog signals.
- Signal Conditioning: Built-in passive filtering and a differential amplifier help to reduce the system complexity and improve signal integrity, allowing for direct interfacing with a variety of signal sources.
- Reduced Design Complexity: The SiP design integrates multiple components into a single package, simplifying PCB layout and reducing the time to market for end products.
- High Integration: With an onboard low noise voltage reference, decoupling capacitors, and other necessary circuitry, the LTM9002CV-AA#PBF minimizes external component requirements.
- Thermal Management: The package is designed for enhanced thermal performance, ensuring reliable operation even under high-speed or high-temperature conditions.
Applications
The versatility of the LTM9002CV-AA#PBF makes it suitable for a wide range of applications, including:
- Wireless and Wired Broadband Communication
- High-speed Data Acquisition Systems
- Medical Imaging Equipment
- Industrial Instrumentation
- Radar and Satellite Communication Systems
Technical Specifications
Parameter
Value
Resolution
14-Bit
Sampling Rate
125Msps
Input Range
±1V Differential

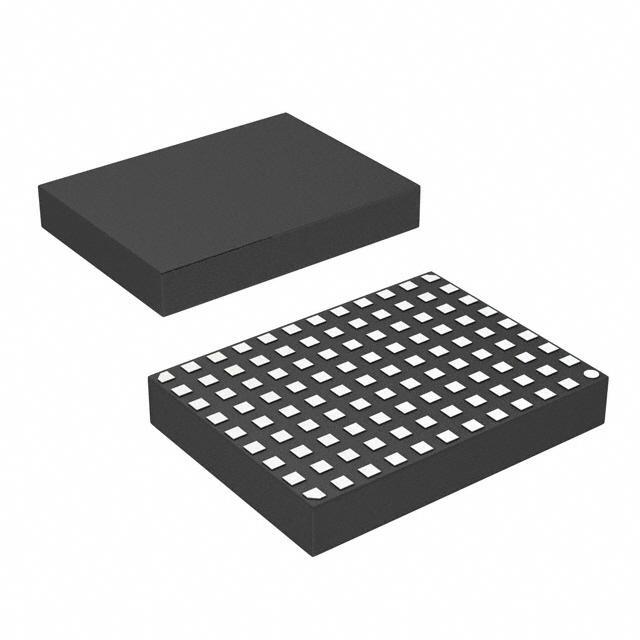

Package
LGA
Overall, the LTM9002CV-AA#PBF from Linear Technology represents a sophisticated solution for high-speed and high-precision analog-to-digital conversion, streamlining the design process for engineers and enhancing the performance and reliability of end products.
