The LTM4601AIV-1#PBF is a high-efficiency, switch mode step-down power module from Linear Technology, now part of Analog Devices, that is designed to simplify the power supply design process for a wide range of applications. Encased in a compact and rugged package, this power module integrates a DC/DC controller, power switches, inductor, and all the supporting components required to complete a high-performance power system.

Key Features:

• Wide Input Voltage Range: This module operates from an input voltage range of 4.5V to 20V, making it suitable for a variety of industrial and commercial power supply applications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 5V, which allows for high flexibility in matching the voltage requirements of different loads.
• High Output Current: It can deliver up to 10A of continuous output current, ensuring sufficient power for demanding applications.
• High Efficiency: The LTM4601AIV-1#PBF features high efficiency, which minimizes heat generation and improves system reliability.

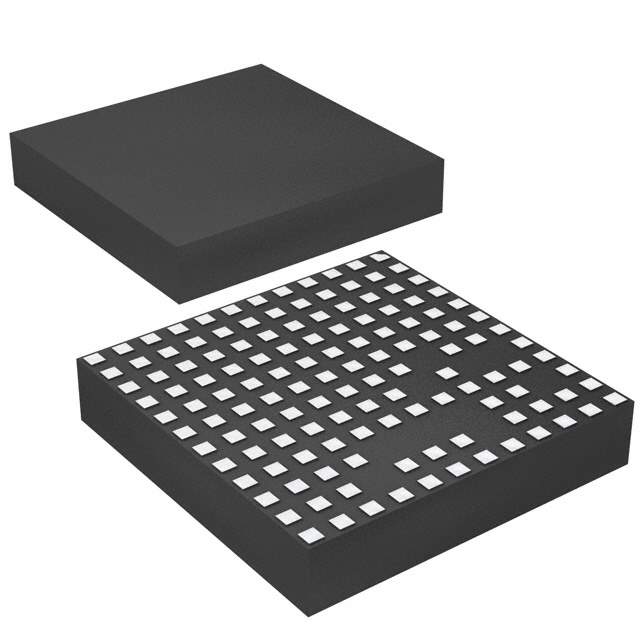

• Thermal Management: Enhanced thermal performance is achieved through a Land Grid Array (LGA) package that facilitates effective heat dissipation.
• Protection Features: It includes overvoltage, overcurrent, and overtemperature protection, safeguarding the module and the downstream circuitry from potential damage.
• Easy Implementation: The module's compact design and integrated components reduce board space requirements and simplify the design process, enabling rapid deployment in various systems.

Applications:

The LTM4601AIV-1#PBF is ideal for use in telecommunications, data processing, industrial, and distributed power systems where space is at a premium and reliable power is a necessity. Its ease of use and robust feature set make it a versatile solution for a broad range of power conversion challenges.

Quality and Reliability:

As a product of Linear Technology, the LTM4601AIV-1#PBF is manufactured to high standards of quality and reliability, ensuring consistent performance and longevity in the field. The module's robust design and comprehensive protection features contribute to a low failure rate and high customer satisfaction.
