Product Overview: LTM2884HY#PBF

The LTM2884HY#PBF is a robust and versatile isolated USB transceiver module designed by Linear Technology, which is now part of Analog Devices, Inc. This high-performance product offers full USB isolation and is engineered to enhance system reliability through electrical isolation of a USB host or device from its connected peripheral. The LTM2884HY#PBF is an ideal solution for systems where ground loop or noise issues can compromise data integrity or cause damage to sensitive components.

Key Features

• Galvanic Isolation: The LTM2884HY#PBF provides up to 2500V RMS of isolation for 1 minute between the USB logic and bus transceiver, effectively preventing noise and transient voltages from affecting the system.
• Integrated Solution: This module contains an isolated DC/DC converter, which simplifies the design by providing power to the secondary side without the need for an external power source.
• High-Speed Data Transfer: It supports full-speed (12Mbps) or low-speed (1.5Mbps) USB communication, ensuring compatibility with a wide range of USB devices.
• Robust ESD Protection: The device includes ±15kV human body model (HBM) ESD protection on the USB transceiver interface, safeguarding the module from potential electrostatic damage.
• Industrial Temperature Range: The LTM2884HY#PBF operates over an industrial temperature range of -40°C to 85°C, making it suitable for harsh environments.

Applications

The LTM2884HY#PBF is designed for use in various applications where USB connectivity requires isolation. These applications include:

• Industrial Control Systems
• Medical Equipment
• Test and Measurement Devices
• Isolated USB Hubs

Package and Quality

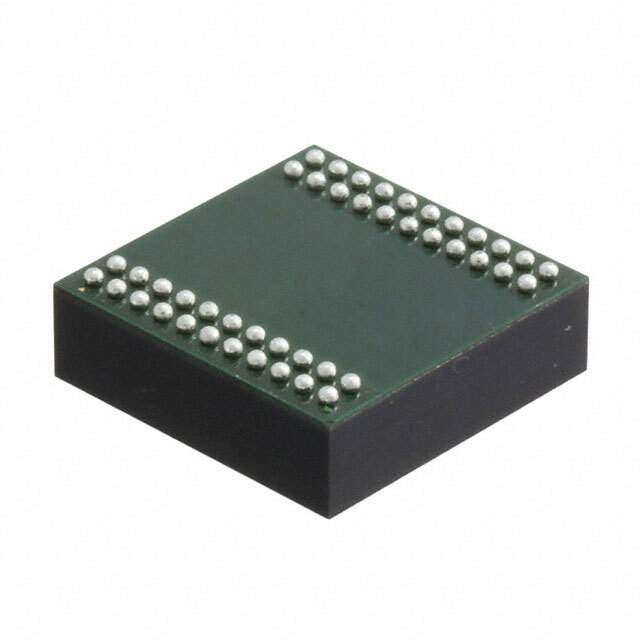

The product comes in a compact, surface-mount 15mm x 11.25mm x 5mm LGA package, which is RoHS compliant. The robust design ensures high reliability and a long operational lifespan, making it a trusted choice for critical applications.

With its combination of isolation, integrated power supply, and ease of use, the LTM2884HY#PBF from Linear Technology stands out as a comprehensive solution for isolated USB communication needs.
