Linear Technology LTC6655BHMS8-3#PBF Low Noise Voltage Reference

The Linear Technology LTC6655BHMS8-3#PBF is a high-precision, low-noise, low-drift voltage reference that is designed to ensure stability and accuracy in a wide range of applications. This precision voltage reference is part of the LTC6655 series, which is known for its exceptional performance characteristics, making it an ideal choice for high-resolution data converters, precision instruments, and reference applications in both industrial and high-end consumer products.

With an output voltage of 3.0V, the LTC6655BHMS8-3#PBF offers a typical noise level of just 1.25ppm/√Hz for the 0.1Hz to 10Hz band, which is remarkably low and ensures minimal signal distortion in sensitive applications. The device also boasts excellent long-term stability and low thermal drift, with a temperature coefficient of typically 2ppm/°C over the full operating temperature range of -40°C to 125°C. This makes the LTC6655BHMS8-3#PBF highly reliable over time and in varying environmental conditions.

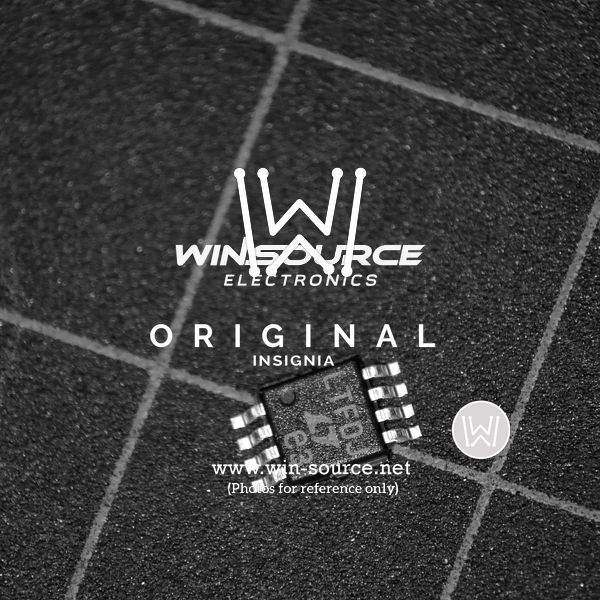

The LTC6655BHMS8-3#PBF comes in an MSOP-8 package, which is compact and suitable for space-constrained applications. It is also fully specified over the extended industrial temperature range, ensuring consistent performance in diverse operating environments. The device features a dropout voltage of typically 300mV, which allows operation with minimal headroom above the output voltage, thus enabling efficient use in low-voltage systems.

Furthermore, the LTC6655BHMS8-3#PBF has excellent line regulation and load regulation characteristics. This ensures that the output voltage remains stable despite variations in input voltage and load current, which is critical for maintaining system accuracy. The device also includes a shutdown feature that reduces supply current to less than 15µA, providing a power-saving mode for battery-powered applications.

In summary, the LTC6655BHMS8-3#PBF from Linear Technology is a top-tier voltage reference that offers a blend of precision, low noise, and stability. It is an ideal solution for engineers looking to enhance the performance of their high-precision circuits and maintain accuracy over time and varying conditions.
