Linear Technology LTC5541IUH#PBF Mixer IC

The LTC5541IUH#PBF is a high-performance, passive double-balanced mixer from Linear Technology, designed for use in wireless communication systems and RF applications. This mixer IC is capable of providing an exceptional conversion gain with low noise figure and excellent linearity, making it a suitable choice for demanding applications such as cellular base stations, point-to-point backhauls, and broadband wireless services.

Constructed with Linear Technology's advanced silicon design, the LTC5541IUH#PBF operates within a wide RF frequency range from 600MHz to 4GHz, and a LO frequency range from 600MHz to 4GHz, which allows for flexible use in a variety of frequency plans. The IF frequency range is from 30MHz to 450MHz, supporting a broad range of intermediate frequencies. This versatility ensures that the mixer can be integrated into multiple stages of an RF system.

The LTC5541IUH#PBF boasts an impressive conversion gain of 2.4dB, which helps to minimize the need for additional amplification in the signal chain, leading to simpler system design and reduced power consumption. The device also features a low noise figure of 10.1dB, which contributes to the overall sensitivity and performance of the receiver system.

Linearity is a critical factor in mixer performance, and the LTC5541IUH#PBF excels with an Input IP3 of 24.4dBm, ensuring that the mixer can handle high signal levels without significant distortion. This characteristic is especially important in environments with multiple signal paths and high-level blockers. Additionally, the mixer has a high compression point (P1dB) of 10.2dBm, which further contributes to its robust performance in challenging conditions.

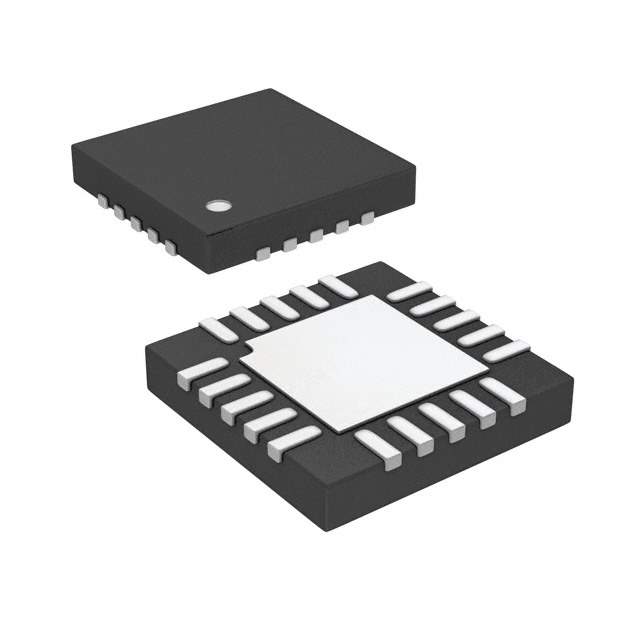

The mixer comes in a compact, 16-lead QFN package with an exposed paddle for enhanced thermal performance. Its small footprint is ideal for space-constrained applications, and the QFN package allows for efficient heat dissipation, ensuring reliable operation under varying conditions.

Overall, the LTC5541IUH#PBF from Linear Technology is a high-quality mixer IC that offers a blend of performance, flexibility, and reliability, making it a top choice for RF designers seeking to optimize their signal chain in high-frequency applications.
