Linear Technology LTC5533EDE RF Power Detector

The LTC5533EDE is a high-performance RF power detector from Linear Technology, designed to provide precise and reliable measurement of signal strength in a variety of communication and instrumentation systems. This versatile device is capable of detecting RF signals over a wide frequency range from 300MHz to 7GHz, making it an ideal choice for applications in cellular, PCS, WCDMA, WiMAX, WLAN, and ISM band systems.

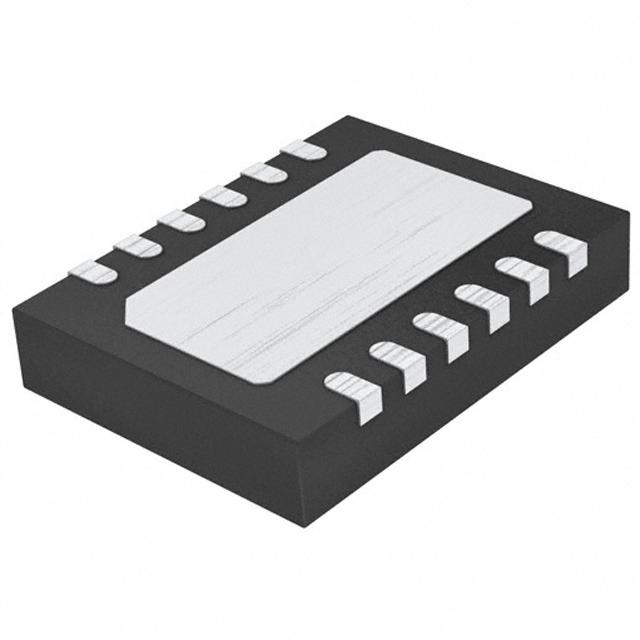

Encased in a compact 12-lead DFN package, the LTC5533EDE boasts a temperature-compensated internal Schottky diode RF detector with an on-chip differential RF power amplifier. This configuration enables the device to deliver a highly linear output voltage that is proportional to the RF input power. The linear response of the LTC5533EDE is maintained across a broad range of input power levels, typically from -32dBm to 10dBm, ensuring accurate power readings even in the presence of varying signal strengths.

One of the key features of the LTC5533EDE is its exceptional temperature stability, which is crucial for maintaining performance consistency in fluctuating environmental conditions. The device also offers a fast response time, providing real-time monitoring of RF signals, which is essential for dynamic system control and power management.

For ease of integration into various circuit designs, the LTC5533EDE requires minimal external components. It operates from a single 3V to 5.25V supply, and its low power consumption makes it suitable for portable and battery-powered equipment. Additionally, the built-in 50Ω match on the RF input simplifies the interface with external components, reducing the need for complex matching networks.

Overall, the LTC5533EDE from Linear Technology is a robust and reliable solution for RF power detection. Its wide frequency range, linear response, and temperature stability make it an excellent choice for designers seeking to enhance the performance and efficiency of their wireless communication systems.
