The LTC4271IUF by Linear Technology is a robust Power over Ethernet (PoE) interface controller that plays a crucial role in the delivery of power over Ethernet cables. This innovative component is designed to work seamlessly with IEEE 802.3af/at compliant powered devices, enabling the safe transfer of electrical power along with data to remote devices over standard network cabling. The LTC4271IUF is a key element in a variety of applications, including VoIP phones, wireless network access points, and security cameras.

Key Features

• IEEE 802.3af/at Compliance: The LTC4271IUF adheres to the stringent specifications set by the IEEE 802.3af/at standards, ensuring compatibility with a wide range of PoE devices.
• Advanced Power Management: This controller offers sophisticated power management capabilities, including programmable classification, inrush current control, and power good outputs.
• High Temperature Operation: The 'I' grade version operates over an industrial temperature range, making it suitable for harsh environments.
• Enhanced Protection: Integrated protection features safeguard against overcurrent, overvoltage, and excessive power dissipation, ensuring reliable operation under various conditions.

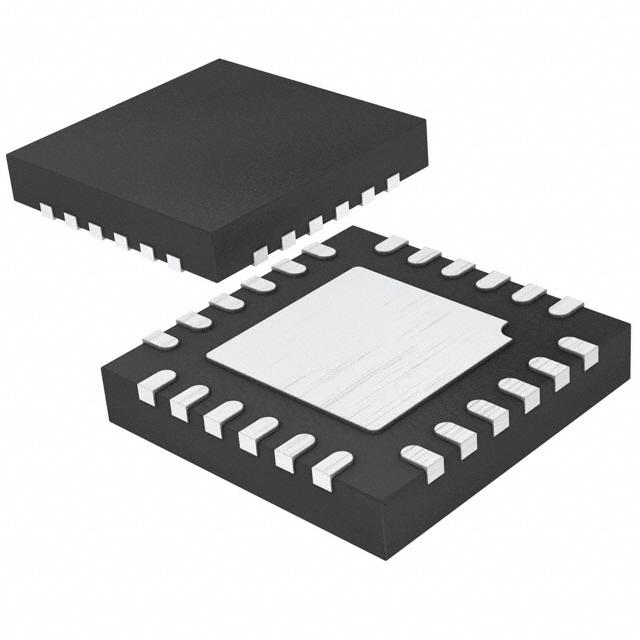

• Compact Form Factor: Housed in a compact QFN package, the LTC4271IUF is ideal for space-constrained applications.

Applications

• VoIP Phones
• Wireless Access Points
• Network Cameras
• Remote Sensors
• Point of Sale (PoS) Terminals

Technical Specifications

The LTC4271IUF operates with a supply voltage range typically between 44V to 57V, which is standard for PoE applications. It also features an internal MOSFET for high reliability and reduced component count. The device's QFN package is lead-free and RoHS compliant, which aligns with current environmental standards for electronic components.

Conclusion

In conclusion, the LTC4271IUF from Linear Technology is a highly capable PoE interface controller that provides a reliable and efficient solution for powering devices over Ethernet. With its adherence to industry standards, advanced power management features, and robust protection mechanisms, it stands out as an essential component for any application requiring PoE capabilities.
