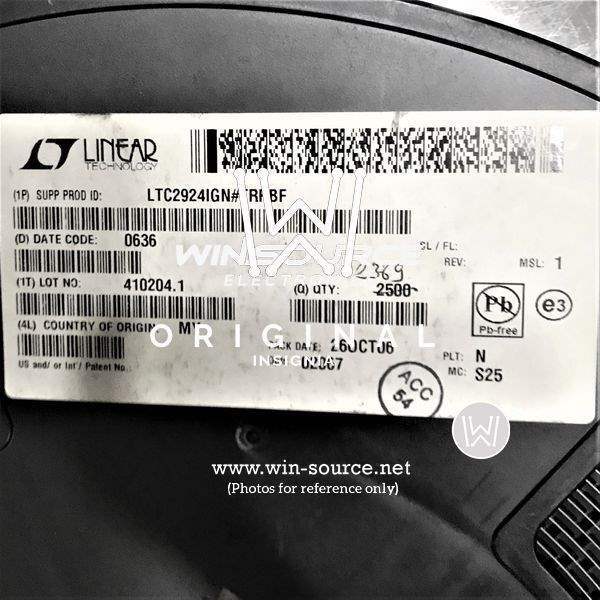

Product Overview: LTC2924IGN#TRPBF

The LTC2924IGN#TRPBF from Linear Technology is a sophisticated power supply sequencing controller designed to manage the turn-on and turn-off sequence of multiple power supplies in complex systems. Aimed at ensuring the proper operation of electronic systems that require a specific power-up and power-down sequence, this product is an essential component for a wide range of applications, including industrial control systems, telecommunications equipment, and server farms.

Key Features

• Versatile Sequencing: The LTC2924 provides four independent voltage monitor inputs, allowing for flexible and configurable sequencing of up to four power supplies. This versatility ensures compatibility with various system requirements and power supply configurations.
• Adjustable Timers: With its integrated timers, the device allows users to program the delay and ramp times for each power supply, offering precise control over the sequencing process.
• Powerful Monitoring: The product includes under-voltage and over-voltage monitoring to safeguard the system against power supply faults, ensuring the system operates within safe voltage levels.
• Compact Design: Housed in a narrow 16-lead SSOP package, the LTC2924IGN#TRPBF is designed for space-constrained applications, providing powerful functionality without taking up significant board space.

Applications

The LTC2924IGN#TRPBF is well-suited for a variety of applications that require reliable power management. It is particularly useful in systems where multiple power rails need to be brought up and down in a specific order to prevent damage to sensitive components or to ensure proper system functionality. Applications include:

• Multi-rail digital systems
• Industrial control systems
• Telecommunication infrastructure
• Networking equipment
• Server and data storage systems

Product Specifications

This product operates over a wide voltage range and includes features such as an external capacitor-adjustable timer, open-drain reset output, and the ability to daisy-chain multiple LTC2924 devices for systems requiring more than four power supply sequences. Its robust design ensures reliable operation even in harsh industrial environments.

Conclusion

The LTC2924IGN#TRPBF from Linear Technology represents a state-of-the-art solution for power supply sequencing needs. With its comprehensive feature set and compact form factor, it is an ideal choice for engineers looking to enhance the reliability and performance of their multi-rail power systems.
