The LTC2389IUK-16#PBF is a high-performance 16-bit successive approximation register (SAR) analog-to-digital converter (ADC) from Linear Technology, designed to deliver precision and speed for a wide range of applications. With a sampling rate of up to 2 million samples per second (Msps), this ADC provides a potent combination of speed and accuracy, making it an ideal choice for advanced data acquisition systems, medical instruments, and industrial control processes.

Key Features and Benefits

• High Resolution: The 16-bit resolution ensures high precision in measurements, capturing minute details in the analog signal.
• Fast Sampling Rate: With a 2Msps conversion rate, the LTC2389IUK-16#PBF can handle high-speed signals and rapidly changing inputs.
• No Latency: The device features no pipeline delay, which is critical for control loop applications where immediate data processing is required.
• Flexible Supply Voltage: It operates with a 2.5V to 5.25V analog supply and a 1.7V to 5.25V digital supply, providing versatility in various system designs.
• Low Power Consumption: The ADC has been optimized for low power operation, which is essential for portable and battery-powered applications.
• Wide Input Range: It supports a pseudo-differential unipolar input range from 0V to VREF (with VREF up to 5V) and a differential input range of ±VREF/2, giving designers flexibility in signal conditioning.
• Easy Interface: The LTC2389IUK-16#PBF features a SPI-compatible serial interface, which simplifies the connection to most microcontrollers and digital systems.

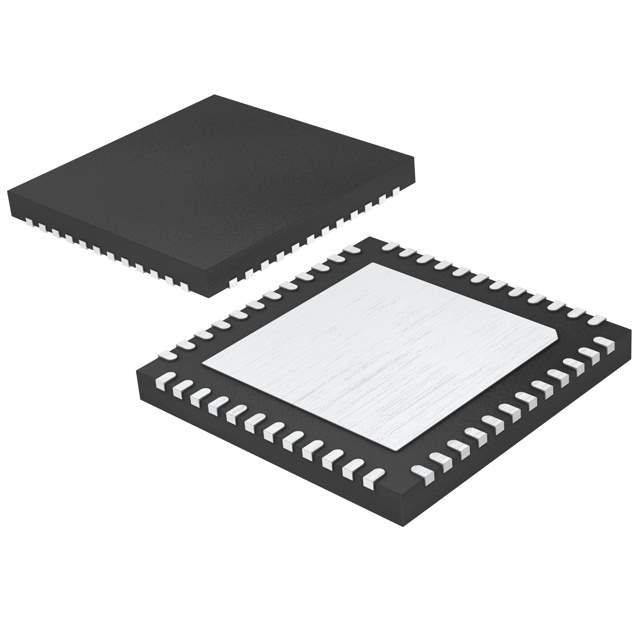

• Durable and Reliable: The product is offered in a robust 48-pin 7mm × 7mm QFN package, suitable for industrial environments with an operating temperature range from -40°C to 125°C.

Applications

The LTC2389IUK-16#PBF is versatile enough to be used in a variety of applications that require high-speed and high-precision data conversion. It is particularly well-suited for:

• Automated Test Equipment (ATE)
• Medical Imaging Systems
• Digital Oscilloscopes
• Industrial Process Control
• Data Acquisition Systems

Overall, the LTC2389IUK-16#PBF is a top-tier ADC solution that combines Linear Technology's expertise in precision analog with the need for speed in digital processing, resulting in a product that excels in both performance and flexibility.
