LTC1485CS8#PBF - Differential Bus Transceiver from Linear Technology

The LTC1485CS8#PBF is a high-speed differential bus transceiver designed by Linear Technology to provide robust data communications on multipoint bus transmission lines. It is a part of the LTC1485 series, which is known for its reliability and efficiency in industrial, networking, and telecommunications applications.

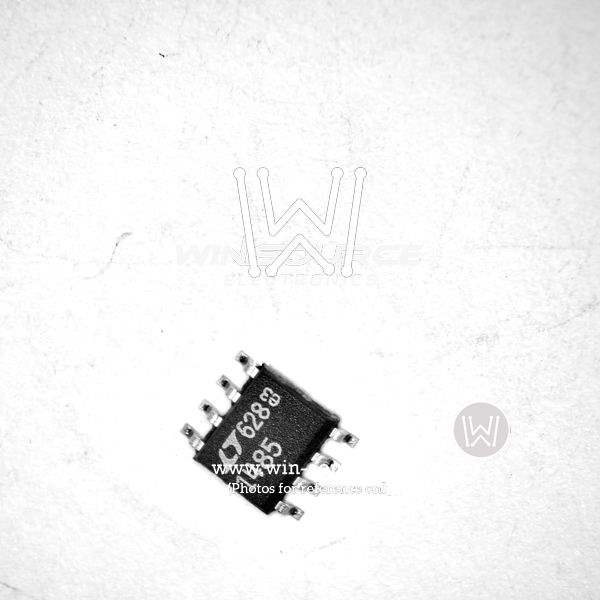

This particular model is housed in an 8-lead SOIC package, offering a compact form factor suitable for space-constrained applications. The LTC1485CS8#PBF operates from a single 5V supply and is fully compliant with the RS485 and RS422 standards, ensuring compatibility with a wide range of other standard-compliant devices on the same bus.

One of the standout features of the LTC1485CS8#PBF is its high-speed operation, with the ability to handle up to 2.5 Mbps data rates. This makes it an ideal solution for applications requiring fast and reliable communication such as industrial control systems, networked devices, and high-speed data acquisition systems.

The device also boasts a low-power shutdown mode that reduces power consumption when the transceiver is not in use, making it an energy-efficient choice for power-sensitive designs. Additionally, the LTC1485CS8#PBF includes protection against damage due to electrostatic discharge (ESD), with an ESD rating of ±10kV, providing robustness in harsh environments.

Another key feature is the LTC1485CS8#PBF's fail-safe receiver, which ensures a high level of safety by guaranteeing a known output state if the input is open or shorted. This is critical for applications where data integrity and system stability are paramount.

The LTC1485CS8#PBF also supports hot-swapping, which allows devices to be added or removed from the bus without causing disruption to the system. This is particularly useful in systems that require maintenance or upgrades without downtime.

In summary, the LTC1485CS8#PBF from Linear Technology is a robust, high-speed differential bus transceiver that offers reliable performance for demanding applications. With its RS485/RS422 compatibility, low-power modes, ESD protection, fail-safe operation, and hot-swap capability, it stands out as a versatile and durable solution for effective data communication.
