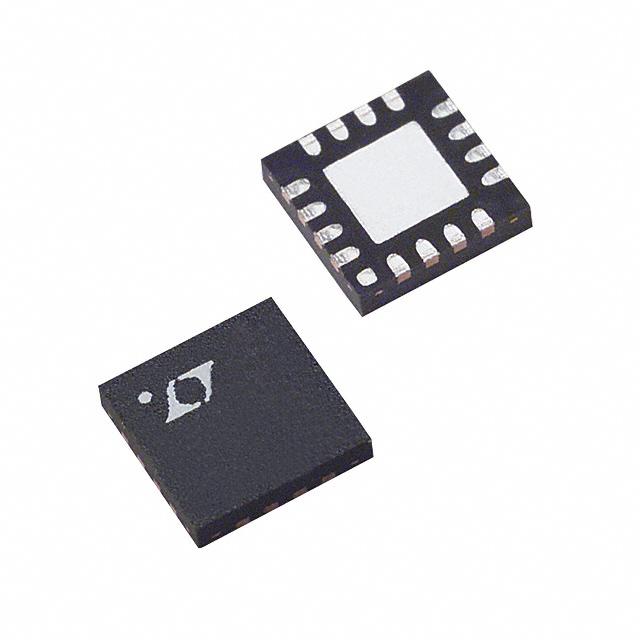

The LT5546EUF#TRPBF is a high-performance, active double-balanced mixer designed by Linear Technology, which is now part of Analog Devices. This advanced RF component is ideal for wireless applications, including cellular, LTE, IF sampling receivers, and other communication systems that require a high level of linearity, wide dynamic range, and low distortion.

Key Features

• High Linearity: The mixer provides an exceptional IIP3 (Input Third-Order Intercept) performance of 25.3 dBm at 900 MHz, which is crucial for maintaining signal fidelity and reducing distortion in complex RF environments.
• Wide Frequency Range: It operates over a broad frequency range from 400 MHz to 4 GHz, enabling it to be used in a variety of RF applications.
• Low Noise Figure: With a low noise figure of 9.3 dB at 900 MHz, it ensures that the signal-to-noise ratio is maintained, which is vital for high-quality signal processing.
• Integrated LO Buffer: The inclusion of an integrated LO buffer simplifies the design by reducing the need for external components and matching circuits.
• Lead-Free and RoHS Compliant: The product adheres to environmental standards, being both lead-free and RoHS compliant, which is important for companies looking to minimize their ecological footprint.

Applications

• Cellular Infrastructure
• Wireless Infrastructure
• IF Sampling Receivers
• Broadband Wireless Access
• Portable Radio Systems

Product Specifications

The LT5546EUF#TRPBF offers a compelling solution for designers looking for a mixer with excellent linearity, a wide operating frequency range, and integrated features that simplify RF design. Its robust performance and compliance with environmental standards make it a preferred choice for modern RF applications.
