The LT5521EUF is a high-performance, active double-balanced mixer designed by Linear Technology, now part of Analog Devices, for RF applications that require a broad frequency range and a high level of linearity. This mixer is a versatile component suitable for a variety of wireless applications, including cellular base stations, broadband wireless access, and RF communication systems.

Key Features

• Wide Frequency Range: The LT5521EUF operates over a wide frequency range, making it suitable for diverse RF applications. It can be used as an upconverter or downconverter, which adds to its flexibility in system design.
• High Linearity: With excellent linearity performance, this mixer helps to minimize distortion in signal processing, which is critical for maintaining signal integrity in communication systems.
• Low LO Drive Level: The mixer is designed to function with a low LO drive level, which reduces the power requirements for the local oscillator and simplifies the overall system design.
• Integrated LO Buffer: The LT5521EUF includes an integrated LO buffer, which provides isolation and reduces the number of external components required for implementation.
• Single-ended RF and LO Ports: These ports simplify the interface to the mixer and reduce the complexity of the PCB layout.

Performance Specifications

• RF Frequency Range: 400MHz to 3.7GHz
• LO Frequency Range: 400MHz to 3.7GHz
• IF Frequency Range: Up to 1.5GHz
• Conversion Gain: 2.1dB at 900MHz
• Input IP3: 24.4dBm at 900MHz

Package and Quality

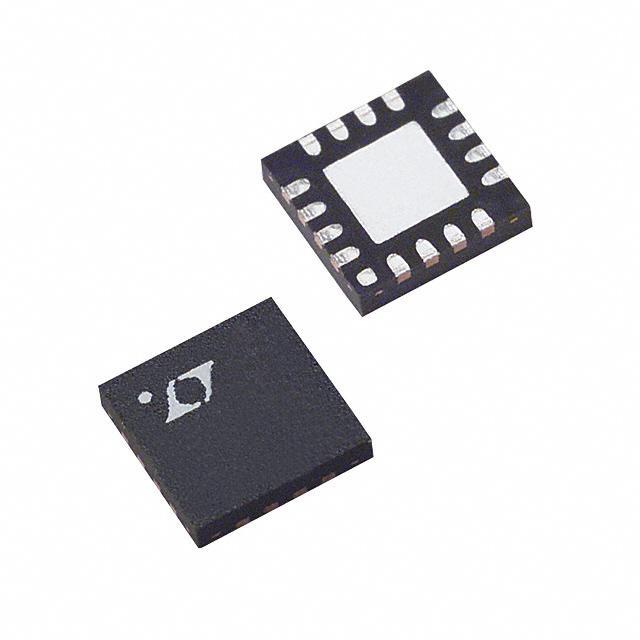

The LT5521EUF comes in a compact, 16-lead QFN package that is ideal for space-constrained applications. The package is designed for excellent thermal performance and reliability. Additionally, the product meets rigorous quality standards, ensuring consistent and dependable performance in demanding environments.

Applications

With its robust feature set, the LT5521EUF is well-suited for:

• Wireless Infrastructure
• CATV and Broadband Wireless
• Portable and Mobile Radios
• Software Defined Radios (SDR)
• Test Equipment

The LT5521EUF mixer from Linear Technology is an exceptional choice for designers looking for a high-performance, flexible mixer to enhance their RF and microwave signal chains.
