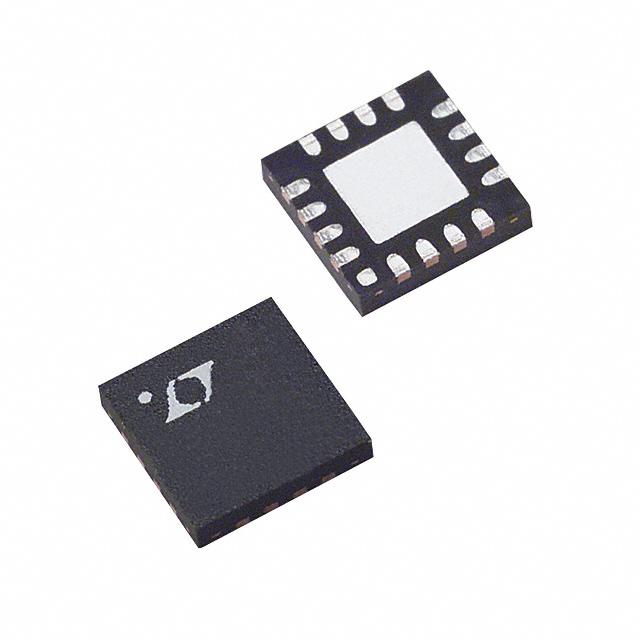

LT5520EUF#TRPBF

Part No LT5520EUF#TRPBF
Manufacturer Linear Technology
Catalog RF Mixers
Description IC MIXER 1.3-2.3GHZ UPCONV 16QFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Linear Technology
Packaging Reel - TR
Status Active
RF Type General Purpose
Frequency 1.3GHz to 2.3GHz
Number of Mixers 1
Gain -1dB
Noise Figure 15dB
Secondary Attributes Up Converter
Operating Supply Current 70mA
Supply Voltage - Operating 4.5 V to 5.25 V
Case / Package 16-QFN (4x4)
Win Source Part Number 108212-LT5520EUF#TRPBF
Ultra Librarian 3D Model Ultra Librarian LT5520EUF#TRPBF CAD Model

Description

Product Overview: LT5520EUF#TRPBF

The LT5520EUF#TRPBF is a high-performance, active mixer from Linear Technology, designed to cater to a wide range of applications including cellular, PCS, 3G and 4G, WiMAX, WLAN, and high-frequency communication systems. This versatile device is well-suited for both upconversion and downconversion processes in RF systems.

Key Features

  • Frequency Range: The LT5520EUF#TRPBF operates over a broad frequency range, which makes it an ideal choice for various RF and IF applications. It can handle RF frequencies from 400MHz to 3.7GHz and LO frequencies from 400MHz to 4GHz, providing flexibility for different system designs.
  • Conversion Gain: With a conversion gain of 2dB, this mixer ensures signal integrity and minimizes the need for additional amplification stages, leading to a more compact and efficient design.
  • Low Noise Figure: The device boasts a low noise figure of 9.3dB, which is critical for maintaining a high signal-to-noise ratio in communication systems, ensuring clearer signal reception and transmission.
  • Integrated LO Buffer: The integrated LO buffer simplifies the LO drive requirement and reduces the need for external components, thereby saving board space and reducing system complexity.
  • High Linearity: Exhibiting an input IP3 of 24.4dBm at 900MHz, the LT5520EUF#TRPBF provides excellent linearity, which is essential for maintaining signal fidelity in the presence of strong interferers.
  • Power Supply: The mixer operates on a single 3.3V supply, making it compatible with a variety of system power rails and ensuring ease of integration into existing designs.

Package and Quality

The LT5520EUF#TRPBF comes in a compact, 16-lead QFN package, which is designed to offer a minimal footprint on PCBs, essential for space-constrained applications. Moreover, the package is RoHS compliant, ensuring adherence to current environmental standards and regulations.

Applications

Due to its versatile nature and high performance, the LT5520EUF#TRPBF is suitable for a range of applications, including but not limited to:

  • Wireless infrastructure (e.g., base stations, repeaters)
  • Point-to-point and point-to-multipoint radios
  • Broadband wireless access systems
  • Test equipment and sensors

With its robust feature set, the LT5520EUF#TRPBF provides designers with a reliable and efficient solution for their mixing requirements, ensuring high-quality signal processing in advanced RF and microwave communication systems.
