Linear Technology LT3744IUHE#PBF LED Driver

The LT3744IUHE#PBF by Linear Technology is a high-performance LED driver integrated circuit designed to deliver precision and efficiency for a wide range of lighting applications. This cutting-edge component is specifically engineered to provide constant-current and constant-voltage control, ensuring optimal performance for high-brightness LEDs.

Key Features:

• Wide Input Voltage Range: The driver operates from an input voltage range of 6V to 36V, making it versatile for various power supply configurations.
• Adjustable Output Current: Users can set the output current up to 20A, which can be adjusted via a single external resistor, providing flexibility in controlling the brightness of the connected LEDs.
• High Efficiency: The LT3744IUHE#PBF boasts high efficiency, which is critical for reducing power consumption and heat generation in LED lighting systems.
• PWM Dimming: The driver includes a PWM dimming capability that allows for precise control over the light output, enhancing the user experience with dynamic lighting effects.
• Robust Protection Features: It has built-in features such as open LED protection, short-circuit protection, and thermal shutdown to ensure the longevity and reliability of the lighting system.

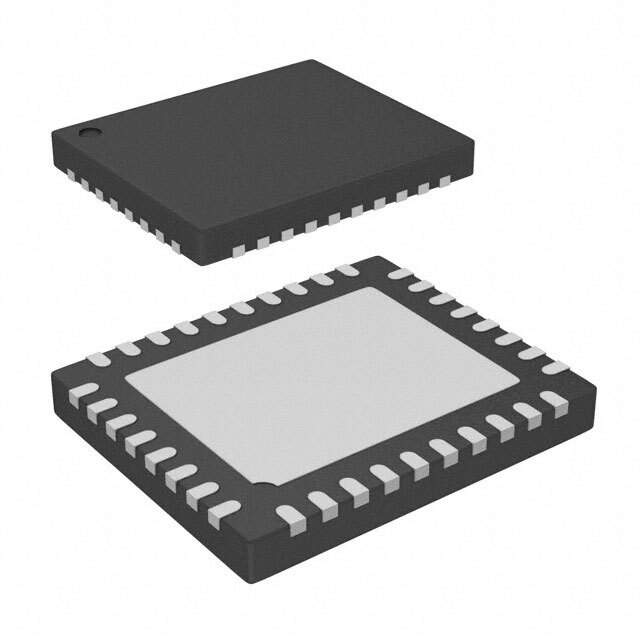

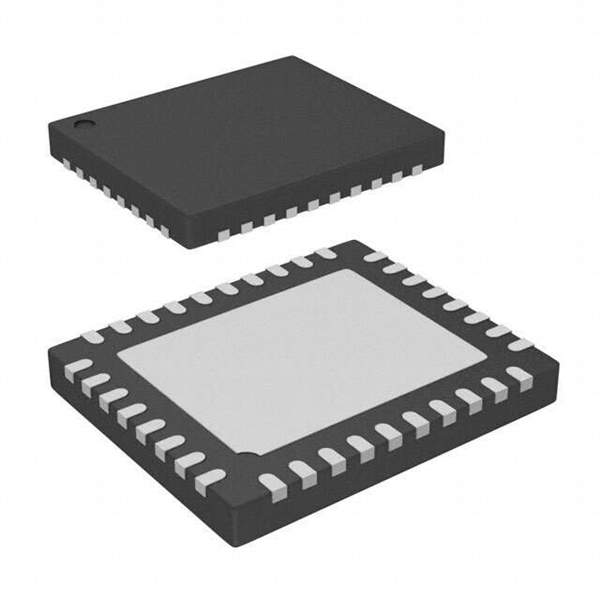

• Compact Package: Housed in a 5mm x 5mm QFN package, the LT3744IUHE#PBF is designed for space-constrained applications without compromising performance.

Applications:

The LT3744IUHE#PBF is ideal for a variety of applications that require high-quality and efficient LED driving solutions. These include:

• Automotive and Avionics Lighting
• Industrial and Architectural Lighting
• General Purpose LED Illumination
• LED Backlighting
• Medical and Forensic Lighting

With its advanced features and robust design, the LT3744IUHE#PBF from Linear Technology stands out as a top choice for designers and engineers looking to create sophisticated LED lighting systems that require precision, efficiency, and reliability.
