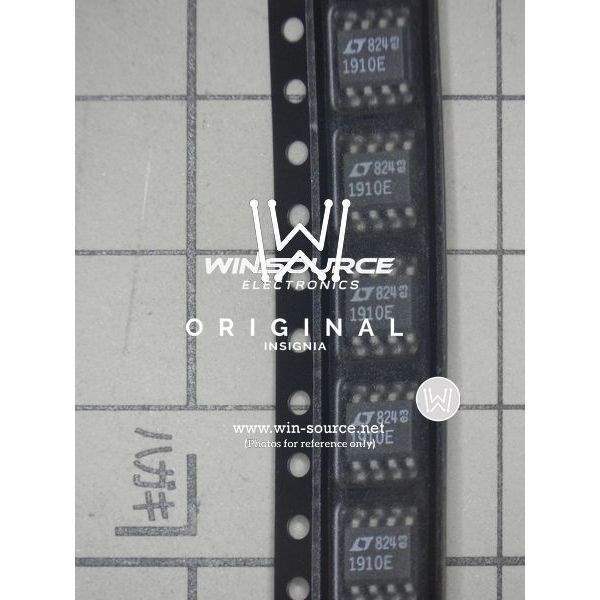

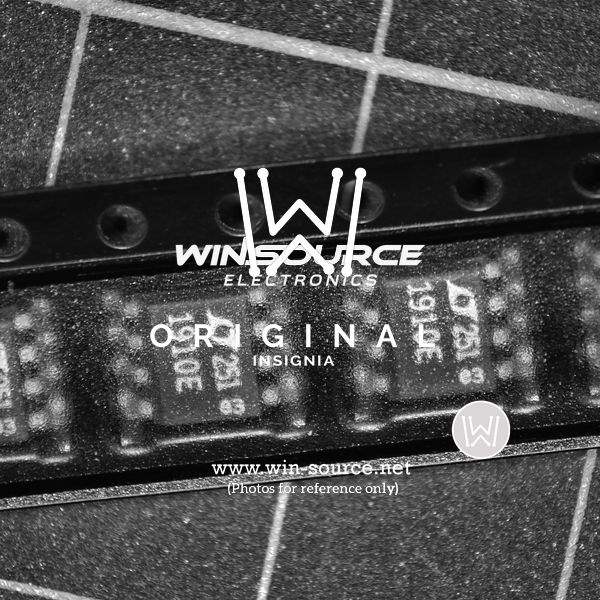

Product Overview: LT1910ES8#TRPBF

The LT1910ES8#TRPBF is a robust, high-side N-channel MOSFET driver designed by Linear Technology, now part of Analog Devices. This component is a critical building block for modern electronics, providing a reliable interface between low-power control systems and high-power switching devices. The LT1910 is housed in an ES8 package, known for its compact footprint and surface-mount capability, making it suitable for space-constrained applications.

Key Features

• High-Side Drive: The LT1910 is capable of driving N-channel MOSFETs in high-side configurations, which is essential for full-range PWM motor control, load switching, and other applications where a common ground is required.
• Wide Input Voltage Range: It operates with a supply voltage range from 8V to 48V, accommodating various industrial and automotive voltage standards.
• Robust Output Drive: The driver can deliver up to 1A of gate drive current, ensuring quick and efficient charging and discharging of the MOSFET gate capacitance for fast switching performance.
• Short-Circuit Protection: The LT1910 includes a short-circuit protection feature that helps to prevent damage to the MOSFET under fault conditions, enhancing system reliability.
• Diagnostic Features: An open-drain fault flag is provided to indicate when the driver has detected an over-current or over-temperature condition, allowing for easy integration with control systems for fault monitoring.
• Extended Temperature Range: The device is designed to operate over an industrial temperature range from -40°C to 125°C, making it suitable for harsh environments.

Applications

The LT1910ES8#TRPBF is versatile and can be used in a variety of applications, including:

• Automotive and industrial control systems
• Solenoid and relay drivers
• DC motor control
• Power distribution systems
• Robotic and mechatronic systems

With its robust design and comprehensive feature set, the LT1910ES8#TRPBF from Linear Technology is an ideal choice for designers looking to implement reliable high-side power control in their next project. Its combination of protection features, diagnostic capabilities, and wide operating range ensures that it can meet the stringent requirements of a wide array of power management applications.
