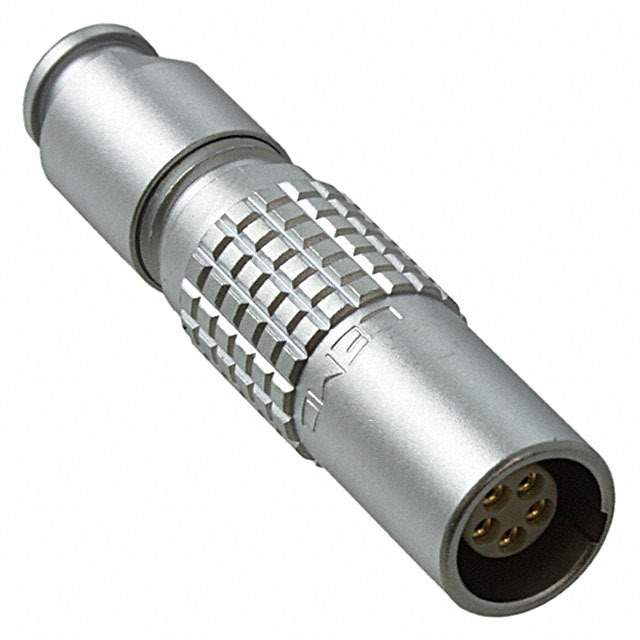

PHG.0B.305.CLLD56 Real Image
Same model may have multiple batches, images only for reference.

PHG.0B.305.CLLD56

Part No PHG.0B.305.CLLD56
Manufacturer LEMO
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 5P GOLD SLDR CUP / 5 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr LEMO
Series 0B
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 5
Shell Size - Insert 305
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Push-Pull
Orientation G
Primary Material Metal
Shell Material Brass
Shell Finish Chrome
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP50 - Dust Protected
Material Flammability Rating UL94 V-0
Features Backshell
Shielding Shielded
Current Rating (Amps) 6.5A
Cable Opening 0.209" ~ 0.220" (5.30mm ~ 5.60mm)
Temperature Range - Operating -55°C ~ 250°C
Backshell Material, Plating Brass, Chrome
Contact Material Bronze
Contact Finish Thickness - Mating 59.0µin (1.50µm)
Insert Material Polyetheretherketone (PEEK)
Base Product Number PHG.0B
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
California Prop 65 Warning Information
Win Source Part Number 1348574-PHG.0B.305.CLLD56
Ultra Librarian 3D Model Ultra Librarian PHG.0B.305.CLLD56 CAD Model

Description

This circular connector assembly comes with a receptacle and female sockets.

  • Manufacturer: (Missing)
  • Connector Type: Circular Connector Assembly
  • Includes: Receptacle and Female Sockets
  • Number of Positions: 5
  • Fastening Type: Push-Pull
  • Shielded: Yes
  • Material Flammability Rating: UL94 V-0
  • Ingress Protection: IP50 (Dust-Protected)
  • Contact Material: Bronze with Gold Finish
  • Contact Finish Thickness: 59.0μin (1.50μm)
  • Shell Material: Brass with Chrome Finish
  • Insert Material: Polyetheretherketone (PEEK)
  • Cable Opening: 0.209" ~ 0.220" (5.30mm ~ 5.60mm)
  • Mounting Type: Free Hanging (In-Line)
  • Operating Temperature: -55°C ~ 250°C
  • Package: Bulk
  • Standard Package Quantity: 1
  • Backshell Material and Plating: Brass and Chrome
  • Current Rating: 6.5A
