Same model may have multiple batches, images only for reference.

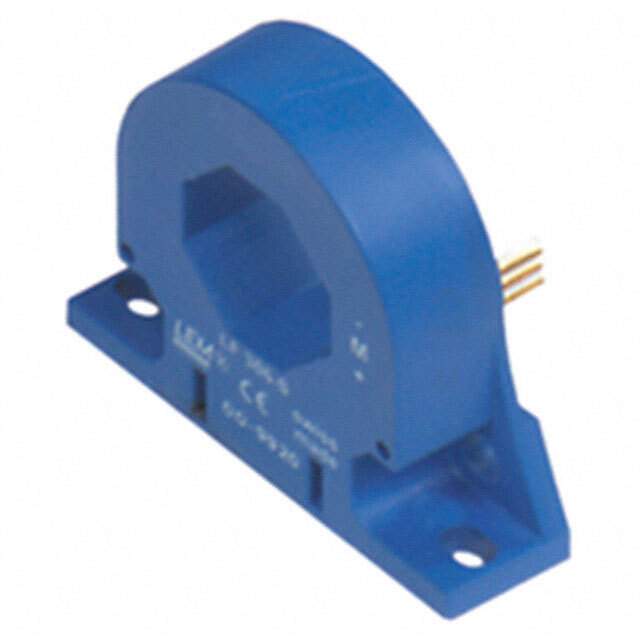

LF 306-S Real Image
Same model may have multiple batches, images only for reference.

LF 306-S

Part No LF 306-S
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 300A AC/DC / Current Sensor 300A 1 Channel Hall Effect, Closed Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr LEM USA Inc.
Series LF
Package Tray
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 300A
Number of Channels 1
Output Ratiometric, Current
Frequency DC ~ 100kHz
Linearity ±0.1%
Accuracy ±0.4%
Voltage - Supply ±12V ~ 15V
Response Time 1µs
Current - Supply (Max) 170mA
Temperature Range - Operating -25°C ~ 70°C
Polarization Bidirectional
Mounting Type Chassis Mount
Package / Case Module
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Names LF 306-S-ND,LF306-S,LF306S
Standard Package 12
Win Source Part Number 1030530-LF 306-S
Ultra Librarian 3D Model Ultra Librarian LF 306-S CAD Model

Description

The 1030530-LF 306-S is a current sensor that belongs to the LF series of electronic components.

  • Polarization: bidirectional
  • Output: ratiometric
  • Response Time: 1μs
  • Sensitivity: 300A
  • Temperature Range: -25°C to 70°C
  • Mounting: chassis
  • Package: module
